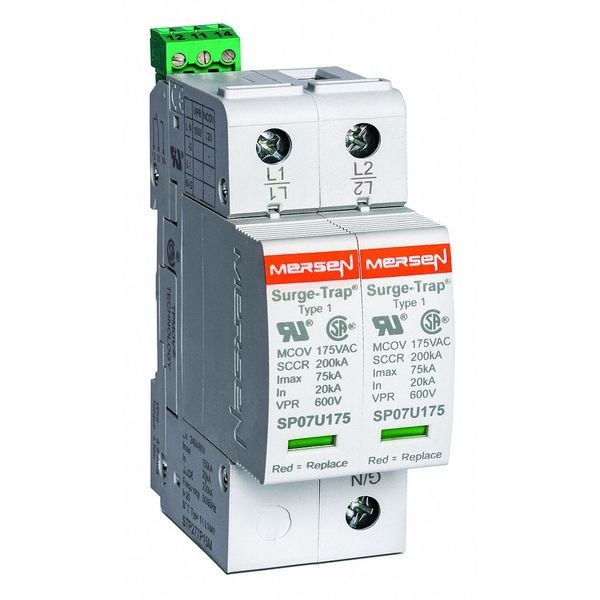

Surge Protection Device, 1 Phase, 240/480V AC, 2 Poles, 3 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | DIN Rail |
| Phase | 1 |
| Voltage | 240/480V AC |
| Number of Poles | 2 |
| Voltage Protection Rating | 1200V (L-L), 600V (L-N) |
| Number of Wires | 3 Wires |
| Modes of Protection | L-N, L-L |
| Max. Surge Current Per Mode | 75 kA |
| Max. Surge Current per Phase | 75 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Modular | Yes |
| Filtering | No |
| Max. Continuing Operating Voltage | 275/550V AC |
| Enclosure NEMA Rating | NEMA 1 |
| IP Rating | IP20 |
| Enclosure Material | Thermoplastic |
| Length | 4.19 in |
| Depth | 2.81 in |
| Width | 1.38 in |
| Wire Gauge | 14 to 4 AWG |
| Includes | Mechanical Indication |
| Modular / Nonmodular | Modular |
| Lightning Impulse Current | 75 kA |
| Standards | ANSI/UL 1449 4th Edition, ANSI/IEEE C62.41.1, C62.41.2, C62.45, RoHS Compliant, Type 1 |
| Amps | 75,000 |
| System Connection | Parallel |
| Max. Operating Temp. | 185 deg F |
| Min. Operating Temp. | -40 deg F |
| Color | Gray |
| UL SPD Type | Type 1 |
| Includes Surge Counter | No |
| Status Indicator | Mechanical Flag |
| Replacement Plug L2 | SP275U |
| Connection Terminal Type | Box |
| Torque Rating | 35.4 lb-in |
| Mcov L-L | 550 V |
| Wiring Range | #4 to #14 AWG |
| Replacement Plug L1 | SP275U |
| System Configuration | Split Phase |
| Wire Type | Solid CU, Stranded |
| Min Storage Temp | -40 °C |
| Mcov L-N | 275 V |
| Flammability Rating | UL94 V0 |
| Wire Connections | Box |
| Max Operating Temp | 85 °C |
| Max Storage Temp | 85 °C |
| Response Time | <25 ns |
| Installation Mounting | DIN Rail |
| Min Operating Temp | -40 °C |
| Ac Or Dc | AC |
| Max Discharge Current Imax 8 20 | 75 kA |
| Max Discharge Current : Imax (8/20) | 75 kA |
| Item Description (ERP) | STP T1 75kA 480/240V SP |
| Short Description | SPD - Plugable STP 75 Series 240/480V L-N VPR 600V L-N MCOV 275V 75 kA 2-pole |
| APPROVALS & STANDARDS | ANSI/UL 1449 4th Edition,; ANSI/IEEE C62.41.1, C62.41.2, |
| Frequency | 50/60 Hz |
| Connection/Terminal Type | Box |
| MOV Response Time | <25 ns |
| Package Quantity | 1 |
