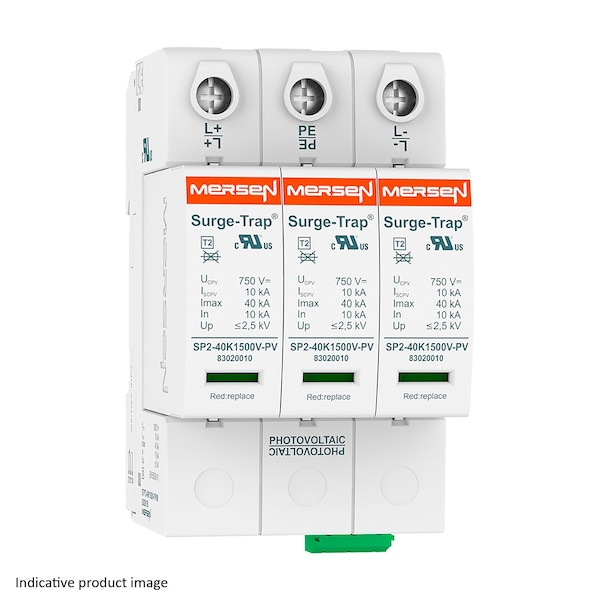

Surge Protection Device, 1500V DC, 3 Poles
| Item | Surge Protection Device |
|---|---|
| Voltage | 1,500 V |
| Number of Poles | 3 |
| Modes of Protection | PV |
| Max. Surge Current per Mode | 40 kA |
| Short Circuit Current Rating | 50 kA, 65 kA, 100 kA |
| Enclosure Material | Polyamide |
| Torque Rating | 35.4 lb-in |
| Iec Spd Type | Type 2 IEC 61643-31; Type 2 EN 50539-11; Type 2 UL 1449 |
| Wire Type | Rigid: 6€¦35mm² |
| Ac Or Dc | DC |
| Response Time | 25 ns |
| Vpr Dc- G | 4,000 V |
| System Configuration | PV |
| Max Operating Temp | 85 °C |
| Vpr Dc G | 4,000 V |
| Replacement Plug L-N | SP2-40K1500V-PV |
| Ul Spd Type | Type 2 |
| Up At In L-L | ‰¤5.0 kV |
| Nominal discharge current (8/20μs) | 10 kA, 20 kA |
| SCCR | 50 kA, 65 kA, 100 kA (UL 1449 4th Ed.) |
| Vpr Dc Dc- | 4,000 V |
| Min Operating Temp | -40 °C |
| Up At In L-Pe | ‰¤5.0 kV |
| Max Discharge Current Imax 8 20 | 40 kA |
| Package Quantity | 1 |
