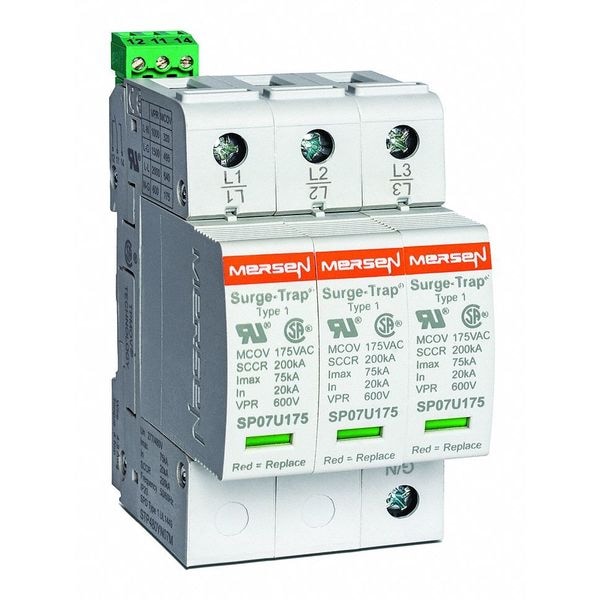

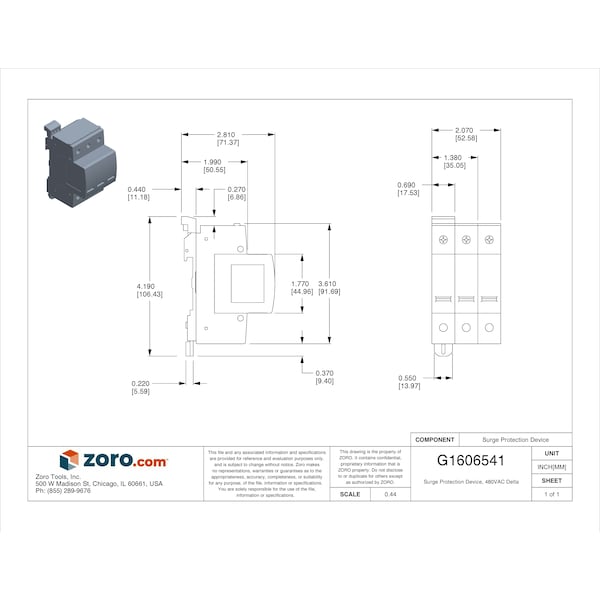

Surge Protection Device, 3 Phase, 480V AC, 3 Poles, 4 Wires

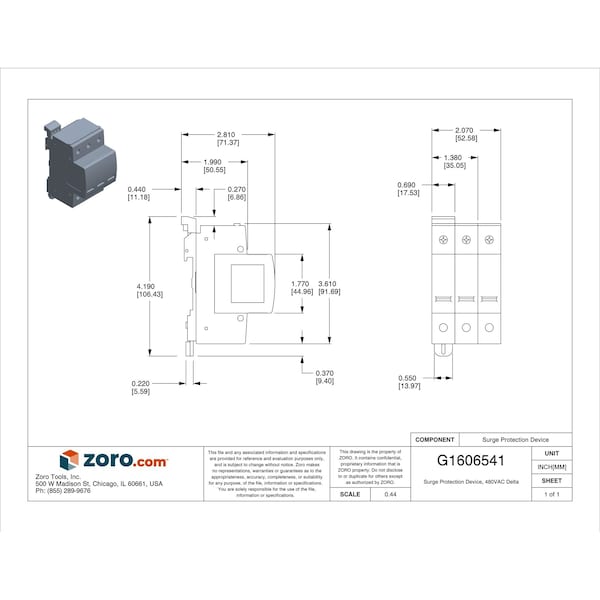

| CAD Available | Yes |
|---|---|
| Item | Surge Protection Device |
| Mounting Style | DIN Rail |
| Phase | 3 |
| Voltage | 480 V |
| Number of Poles | 3 |
| Voltage Protection Rating | 1500V (L-G), 3000V (L-L) |
| Number of Wires | 4 Wires |
| Modes of Protection | L-G, L-L |
| Max. Surge Current Per Mode | 75 kA |
| Max. Surge Current per Phase | 75 kA |
| Nominal Discharge Current | 10 kA |
| Short Circuit Current Rating | 200 kA |
| Modular | Yes |
| Filtering | No |
| Max. Continuing Operating Voltage | 550/1100V AC |
| Enclosure NEMA Rating | NEMA 1 |
| IP Rating | IP20 |
| Enclosure Material | Thermoplastic |
| Length | 4.19 in |
| Depth | 2.81 in |
| Width | 2.07 in |
| Wire Gauge | 14 to 4 AWG |
| Includes | Form C Dry Contact |
| Standards | ANSI/UL 1449 4th Edition, ANSI/IEEE C62.41.1, C62.41.2, C62.45, RoHS Compliant, Type 1 |
| Modular / Nonmodular | Modular |
| Lightning Impulse Current | 75 kA |
| UL SPD Type | Type 1 |
| Amps | 75,000 |
| Color | Gray |
| System Connection | Parallel |
| Min. Operating Temp. | -40 deg F |
| Max. Operating Temp. | 185 deg F |
| Status Indicator | Audible Alarm |
| Includes Surge Counter | No |
| Indication System Type | Microswitch |
| Indication System | Yes |
| Frequency | 50/60 Hz |
| Response Time | <25 ns |
| Wire Connections | Box |
| Item Description (ERP) | STP T1 75kA 480V DELTA ALM |
| Max Discharge Current Imax 8 20 | 75 kA |
| Replacement Plug L1 | SP07U550 |
| Protection Modes | L-L |
| Max Discharge Current : Imax (8/20) | 75 kA |
| MOV Response Time | <25 ns |
| Mcov L-G | 550 V |
| Replacement Plug L3 | SP07U550 |
| System Configuration | Delta |
| Flammability Rating | UL94 V0 |
| Max Operating Temp | 85 °C |
| Connection Terminal Type | Box |
| Replacement Plug L2 | SP07U550 |
| Max Storage Temp | 85 °C |
| Housing Material | PET |
| Ac Or Dc | AC |
| Connection/Terminal Type | Box |
| Min Operating Temp | -40 °C |
| Wire Type | Solid CU, Stranded |
| Torque Rating | 35.4 lb-in |
| Short Description | SPD - Plugable STP 75 Series 480V L-L VPR 3000V L-L MCOV 1100V 75 kA 3-pole MICR |
| Wiring Range | #4 to #14 AWG |
| Min Storage Temp | -40 °C |
| Installation Mounting | DIN Rail |
| Mcov L-L | 1,100 V |
| APPROVALS & STANDARDS | ANSI/UL 1449 4th Edition,; ANSI/IEEE C62.41.1, C62.41.2, |
| Package Quantity | 1 |
