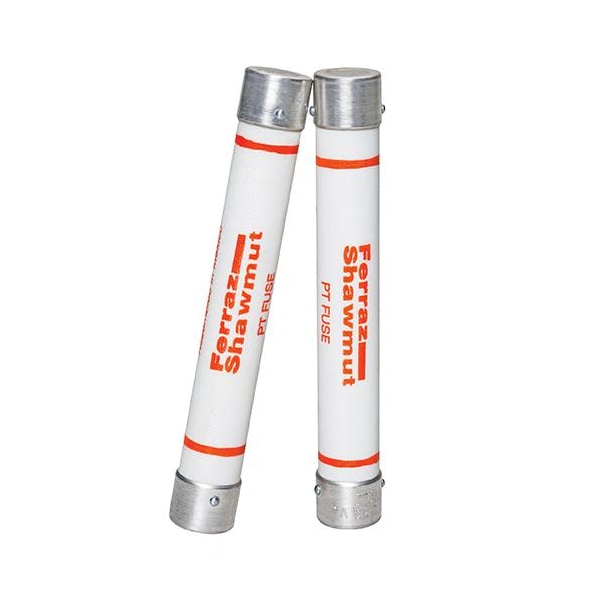

UL Class Fuse, A720T Series, Fast-Acting, 1A, 7200V AC
| Series | A720T |
|---|---|
| Speed | Fast-Acting |
| Amps | 1A |
| AC Voltage Rating | 7200V AC |
| DC Voltage Rating | Not Rated |
| Interrupt Rating | 50kA at 7200V AC |
| Body Style | Ferrule |
| Body Material | GMG |
| Length | 9-1/2 in |
| Diameter | 0.81 in |
| Item | UL Class Fuse |
| Connection Material | Tin-Plated Copper |
| Mounting | Clip |
| Short Description | Medium Voltage Fuse 7200V 1A PT Type Ferrule Mount, T Series |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Package Quantity | 1 |
