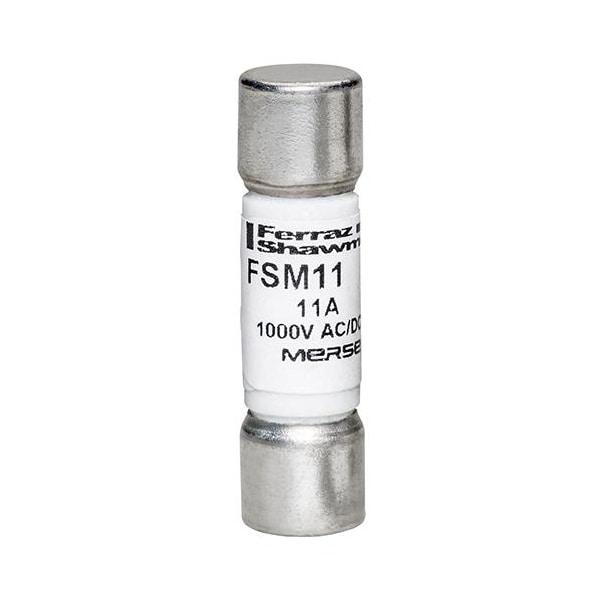

UL Class Fuse, FSM Series, Fast-Acting, 11A, 1000V AC
| Series | FSM |
|---|---|
| Speed | Fast-Acting |
| Amps | 11A |
| AC Voltage Rating | 1000V AC |
| DC Voltage Rating | 1000V DC |
| Interrupt Rating | 20kA at 1000V AC |
| Body Style | Ferrule |
| Body Material | GMG |
| Length | 1-1/2 in |
| Diameter | 0.41 in |
| Item | UL Class Fuse |
| Fuse Speed | Fast Acting |
| Weight | 0.012 lb |
| Connection Material | Tin-Plated Copper |
| Mounting | Clip |
| APPROVALS & STANDARDS | UL Recognized component File E60314 |
| AC Max I.R./Breaking Capacity: I1 | 20 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Short Description | Fuse 1000V 11A Fast-Acting Midget FSM Series |
| Package Quantity | 1 |
