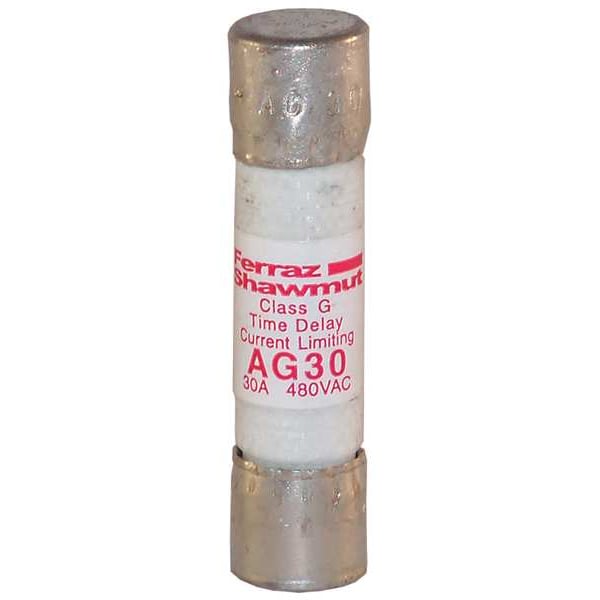

UL Class Fuse, G Class, AG Series, Time-Delay, 30A, 480V AC, Non-Indicating
| Class | G |
|---|---|
| Series | AG |
| Speed | Time-Delay |
| Amps | 30A |
| AC Voltage Rating | 480V AC |
| DC Voltage Rating | Not Rated |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 480V AC |
| Body Style | Cylindrical |
| Body Material | Fiberglass |
| Length | 1-5/8 in |
| Diameter | 13/32 in |
| Equivalent Brand and Series | Bussmann SC, Littelfuse SLC, Mersen AG |
| Equivalent Series | AG, SC, SLC |
| Fits Fuse Block Style | Rejection |
| Item | UL Class Fuse |
| Element | Dual |
| Standards | CSA Certified to C22.2 No. 248.5, UL Listed 248-5 |
| Mounting | Clip |
| Weight | 0.03 lb |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| APPROVALS & STANDARDS | UL listed to standard 248-5 File E2137; CSA certified to standard C22.2 No. 248.5 |
| Frequency | 50/60 Hz |
| Body/Insulating Material | GMG |
| Short Description | Fuse AG - Class G 480VAC 30A Time Delay Ferrule |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Functionally Equal To | Bussmann SC, Littelfuse SLC |
| Connection Type | Ferrule |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Package Quantity | 1 |
