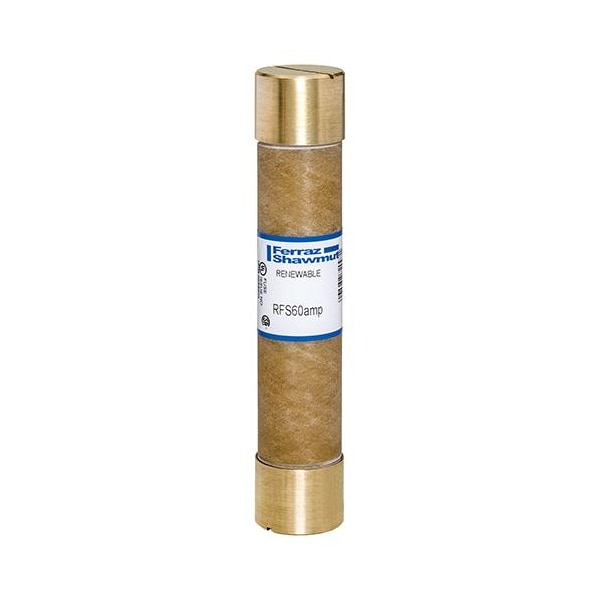

UL Class Fuse, H Class, RFS Series, Fast-Acting, 60A, 600V AC
| Class | H |
|---|---|
| Series | RFS |
| Speed | Fast-Acting |
| Amps | 60A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | Not Rated |
| Interrupt Rating | 10kA at 250V AC |
| Body Style | Cylindrical |
| Body Material | FWGE |
| Length | 5-1/2 in |
| Diameter | 1.06 in |
| Item | UL Class Fuse |
| Standards | UL Certified; CSA Certified |
| Connection Material | Brass |
| Mounting | Clip |
| Connection/Terminal Material | Brass |
| Frequency | 50/60 Hz |
| Short Description | Series |
| APPROVALS & STANDARDS | UL listed to standard 248-7 File E2137; CSA certified to standard C22.2 no. 248.7 |
| Package Quantity | 1 |
