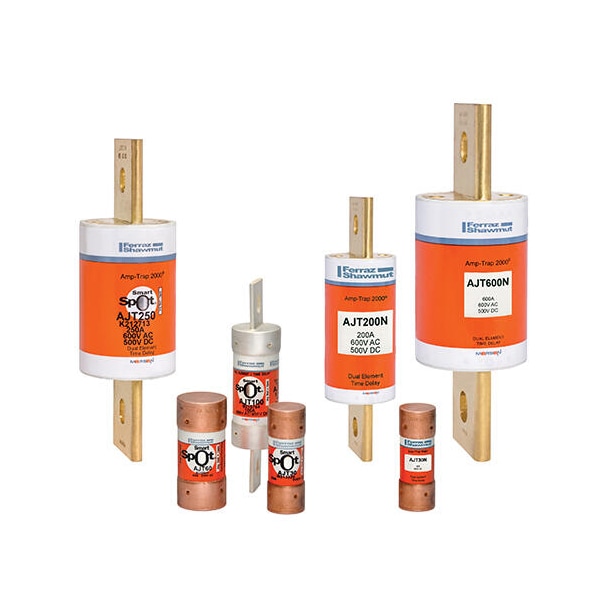

UL Class Fuse, J Class, AJT Series, Time-Delay, 200A, 600V AC, Indicating
| Class | J |
|---|---|
| Series | AJT |
| Speed | Time-Delay |
| Amps | 200A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 500V DC |
| Visual Indication | Indicating |
| Interrupt Rating | 200kA at 600V AC |
| Body Style | Blade |
| Body Material | GMG |
| Length | 5-3/4 in |
| Diameter | 1.62 in |
| Item | UL Class Fuse |
| Weight | 1.02 lb |
| Connection Type | Blade |
| Mounting | Clip or Bolted |
| APPROVALS & STANDARDS | UL listed to standard 248-8 File E2137; DC listed to UL standard 248; CSA certified to standard C22.2 No. 248.8; IEC 60269-2-1; UL listed; DC tested to UL standard 248 |
| Rated voltage DC UL | 500 V |
| Short Description | Fuse Amp-Trap 2000® 600V 200A Time-Delay Class J AJT Series EI Indicator |
| Frequency | 50/60 Hz |
| Connection/Terminal Type | Blade |
| Connection/Terminal Material | Brass |
| Body/Insulating Material | GMG |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System Type | EI Indicator |
| Package Quantity | 1 |
