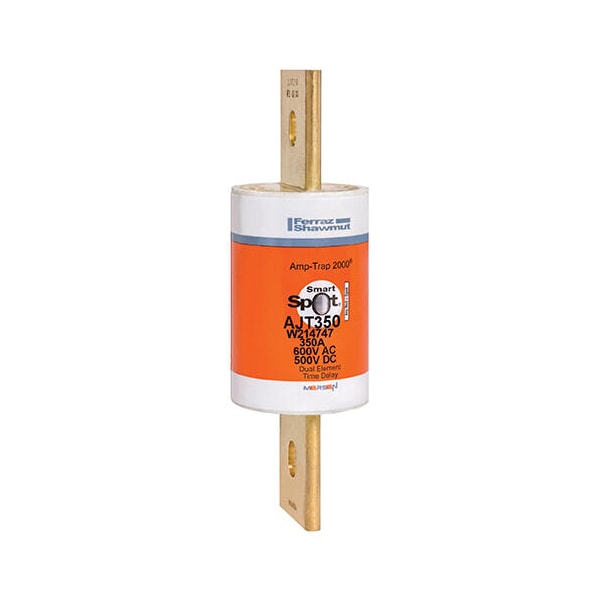

UL Class Fuse, J Class, AJT Series, Time-Delay, 350A, 600V AC, Indicating
| Class | J |
|---|---|
| Series | AJT |
| Speed | Time-Delay |
| Amps | 350A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 500V DC |
| Visual Indication | Indicating |
| Interrupt Rating | 100kA at 500V DC, 200kA at 600V AC |
| Body Style | Blade |
| Body Material | GMG |
| Length | 7.13 in |
| Diameter | 2.12 in |
| Equivalent Brand and Series | Bussmann LPJ, Littelfuse JTD, Mersen AJT |
| Equivalent Series | AJT, JTD, LPJ |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | JFB, SJ, US3J, US5J |
| Item | UL Class Fuse |
| Connection Type | Blade |
| Weight | 2 lb |
| Mounting | Clip or Bolted |
| Connection/Terminal Type | Blade |
| Body/Insulating Material | GMG |
| Frequency | 50/60 Hz |
| Indication System Type | SmartSpot® |
| Connection/Terminal Material | Brass |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Rated voltage DC UL | 500 V |
| Short Description | Fuse Amp- Series |
| APPROVALS & STANDARDS | UL listed to standard 248-8 File E2137; DC listed to UL standard 248; CSA certified to standard C22.2 No. 248.8; IEC 60269-2-1; UL listed; DC tested to UL standard 248 |
| Package Quantity | 1 |
