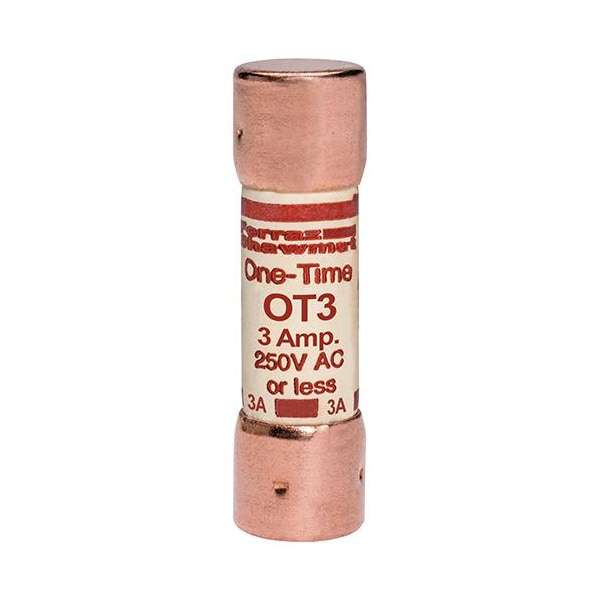

UL Class Fuse, K5 Class, OT Series, Fast-Acting, 3A, 250V AC
| Class | K5 |
|---|---|
| Series | OT |
| Speed | Fast-Acting |
| Amps | 3A |
| AC Voltage Rating | 250V AC |
| DC Voltage Rating | 250V DC |
| Interrupt Rating | 50kA at 250V AC, 20kA at 250V DC |
| Body Style | Ferrule |
| Body Material | Melamine |
| Length | 2 in |
| Diameter | 0.56 in |
| Fits Fuse Block Style | Non-Rejection |
| Item | UL Class Fuse |
| Weight | 0.04 lb |
| Connection Material | Copper |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Material | Copper |
| APPROVALS & STANDARDS | UL Listed to Standard 248-9 File E2137; CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.); Self-certified for DC per UL248; UL Listed to Standard 248-9 File E2137; CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.); Self-certified for DC per UL248 |
| Short Description | Fuse Amp- Class K5 OT Series |
| Package Quantity | 1 |
