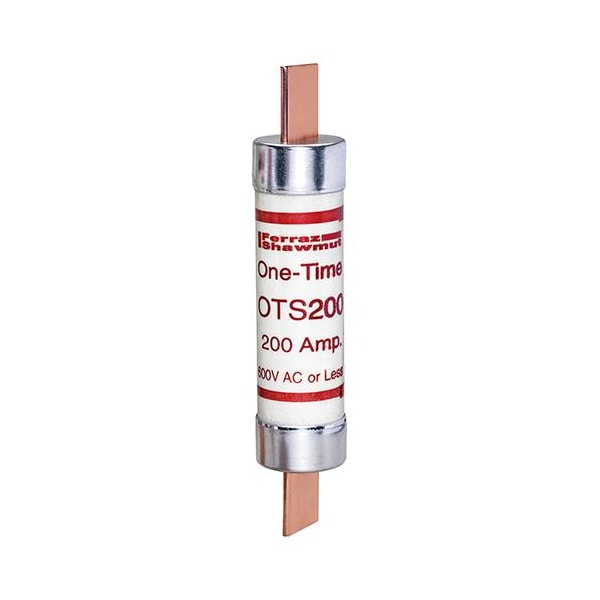

UL Class Fuse, K5 Class, OTS Series, Fast-Acting, 200A, 600V AC
| Class | K5 |
|---|---|
| Series | OTS |
| Speed | Fast-Acting |
| Amps | 200A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 300V DC |
| Interrupt Rating | 50kA at 600V AC, 20kA at 300V DC |
| Body Style | Blade |
| Body Material | Polytube |
| Length | 9.63 in |
| Diameter | 1.81 in |
| Fits Fuse Block Style | Non-Rejection |
| Item | UL Class Fuse |
| Fuse Speed | Fast Acting |
| Weight | 1.54 lb |
| Connection Material | Tin-Plated Copper |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Short Description | Series |
| APPROVALS & STANDARDS | UL Listed to Standard 248-9 File E2137; CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.); Self-certified for DC per UL248; UL Listed to Standard 248-9 File E2137; CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.); Self-certified for DC per UL248 |
| Connection/Terminal Material | Tin-Plated Copper |
| Package Quantity | 1 |
