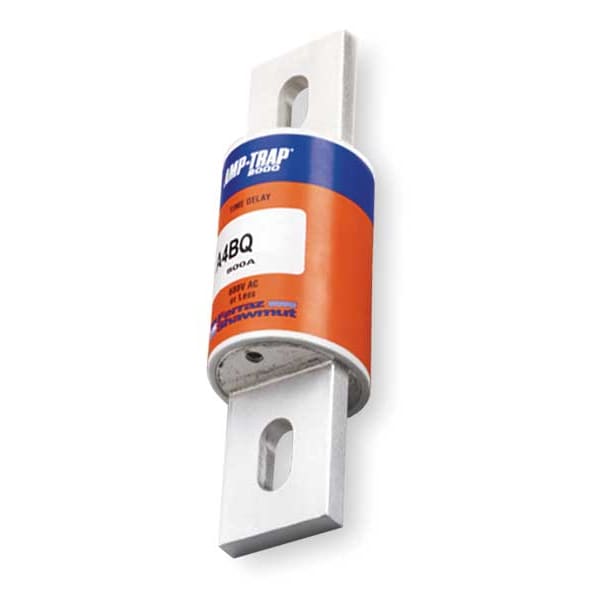

UL Class Fuse, L Class, A4BQ Series, Time-Delay, 800A, 600V AC, Non-Indicating
| Class | L |
|---|---|
| Series | A4BQ |
| Speed | Time-Delay |
| Amps | 800A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 500V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 500V DC, 200kA at 600V AC |
| Body Style | Blade |
| Body Material | Melamine |
| Length | 8-5/8 in |
| Diameter | 2-1/2 in |
| Equivalent Brand and Series | Bussmann KRP-C, Littelfuse KLPC, Mersen A4BQ |
| Equivalent Series | A4BQ, KLPC, KRP-C |
| Fits Fuse Block Style | Non-Rejection |
| Item | UL Class Fuse |
| Rated voltage DC UL | 500 V |
| Mounting | Bolted |
| Standards | CSA, UL |
| Weight | 4 lb |
| Element | Dual |
| Functionally Equal To | Bussmann KRP-C, Littelfuse KLPC |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection Type | Blade |
| Body/Insulating Material | GMG |
| APPROVALS & STANDARDS | UL listed to standard 248-10 File E2137; DC listed to UL standard 248 (100-2000A); CSA certified to standard C22.2 No. 248.10 (601-6000A); UL listed |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Short Description | Series |
| Package Quantity | 1 |
