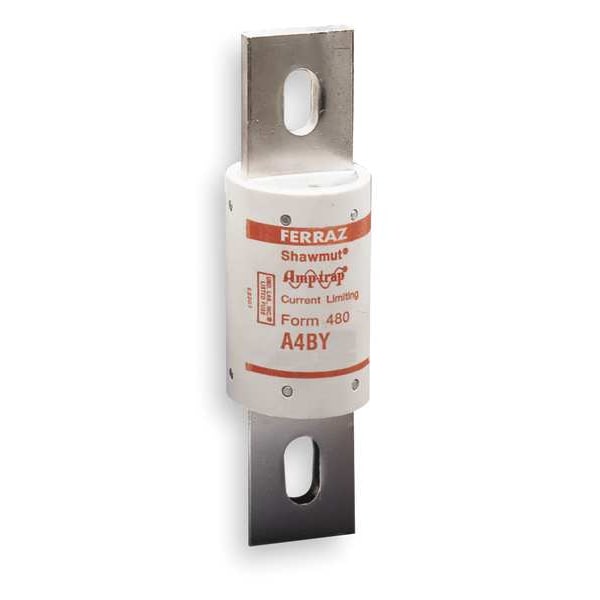

UL Class Fuse, L Class, A4BY Series, Time-Delay, 800A, 600V AC, Non-Indicating
| Class | L |
|---|---|
| Series | A4BY |
| Speed | Time-Delay |
| Amps | 800A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 300V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 300V DC, 200kA at 600V AC |
| Body Style | Blade |
| Body Material | Melamine, Glass |
| Length | 8-5/8 in |
| Diameter | 2-1/2 in |
| Equivalent Brand and Series | Bussmann KLU, Bussmann KTU, Littelfuse KLLU, Littelfuse KLPC, Mersen A4BY |
| Equivalent Series | A4BY, KLLU, KLPC, KLU, KTU |
| Fits Fuse Block Style | Non-Rejection |
| Item | UL Class Fuse |
| Rated voltage DC UL | 300 V |
| Standards | CSA, UL |
| Mounting | Bolted |
| Weight | 3.95 lb |
| Element | Dual |
| Functionally Equal To | Bussmann KLU, Littelfuse KLLU, KLP, KLPC |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| APPROVALS & STANDARDS | Mersen Self-Certification, UL Listed to Standard 248-10, File E2137; CSA Certified to Standard C22.2, No. 248.10 IEC 269-2-1; DC Tested to UL 248 limits (Mersen Self-Certified) |
| Short Description | Series, Fuse Amp-Trap® 600V 800A Time-Delay |
| Body/Insulating Material | GMG |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Connection Type | Blade |
| Connection/Terminal Type | Blade |
| Connection/Terminal Material | Silver-Plated Copper |
| Package Quantity | 1 |
