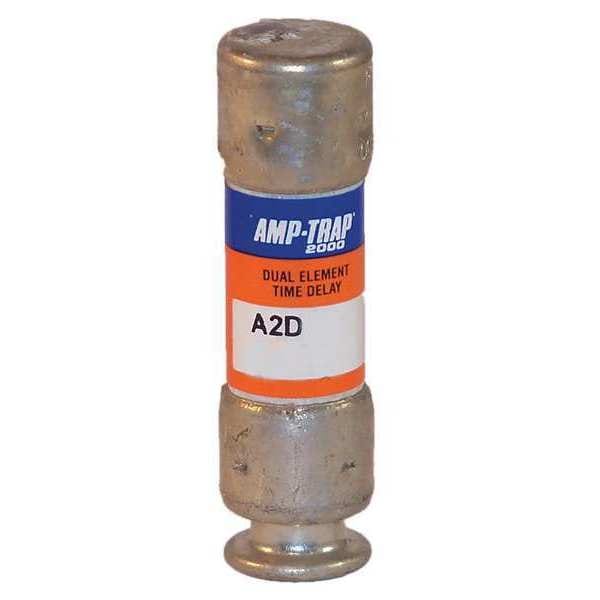

UL Class Fuse, RK1 Class, A2D-R Series, Time-Delay, 35A, 250V AC, Indicating
| Class | RK1 |
|---|---|
| Series | A2D-R |
| Speed | Time-Delay |
| Amps | 35A |
| AC Voltage Rating | 250V AC |
| DC Voltage Rating | 250V DC |
| Visual Indication | Indicating |
| Interrupt Rating | 100kA at 250V DC, 200kA at 250V AC |
| Body Style | Cylindrical |
| Body Material | Polyester |
| Length | 3 in |
| Diameter | 13/16 in |
| Equivalent Brand and Series | Bussmann LPN-RK-SPI, Littelfuse LLNRK-ID, Mersen A2D-R |
| Equivalent Series | A2D-R, LLNRK-ID, LPN-RK-SPI |
| Fits Fuse Block Style | Rejection |
| Compatible Fuse Block Series | 2HKRFB |
| Item | UL Class Fuse |
| Rated voltage DC UL | 250 V |
| Weight | 0.14 lb |
| Element | Dual |
| Mounting | Clip |
| Standards | CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137 |
| Connection/Terminal Material | Tin-Plated Copper |
| Indication System Type | SmartSpot® |
| Connection/Terminal Type | Ferrule |
| Functionally Equal To | Bussmann LPN-RK-SPI, Littelfuse LLNRK-ID |
| Short Description | Fuse Amp- Series Smart-Spot |
| Fuse Holder Code | K |
| Body/Insulating Material | PolyTube |
| Frequency | 50/60 Hz |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| APPROVALS & STANDARDS | UL listed to standard 248-12 File E2137; DC listed to UL standard 248; CSA certified to standard C22.2 No. 248.12 |
| Connection Type | Ferrule |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Package Quantity | 1 |
