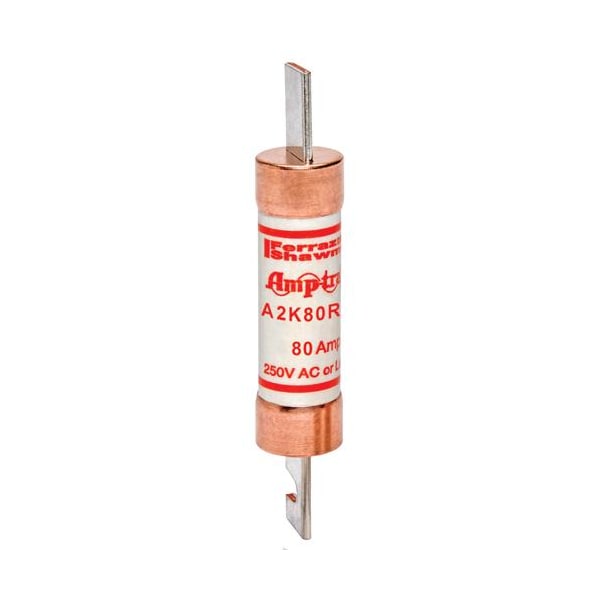

UL Class Fuse, RK1 Class, A2K-R Series, Fast-Acting, 80A, 250V AC
| Class | RK1 |
|---|---|
| Series | A2K-R |
| Speed | Fast-Acting |
| Amps | 80A |
| AC Voltage Rating | 250V AC |
| DC Voltage Rating | 250V DC |
| Interrupt Rating | 200kA at 250V AC, 20kA at 250V DC |
| Body Style | Blade |
| Body Material | Polytube |
| Length | 5.88 in |
| Diameter | 1.06 in |
| Fits Fuse Block Style | Rejection |
| Item | UL Class Fuse |
| Fuse Speed | Fast Acting |
| Weight | 0.38 lb |
| Mounting | Clip |
| Connection Material | Tin-Plated Copper |
| Connection/Terminal Material | Tin-Plated Copper |
| Short Description | Fuse Amp- Series |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| APPROVALS & STANDARDS | UL listed to standard 248-12 File E2137; CSA certified to standard C22.2 No. 248.12; Self-certified for DC per UL248 |
| Package Quantity | 1 |
