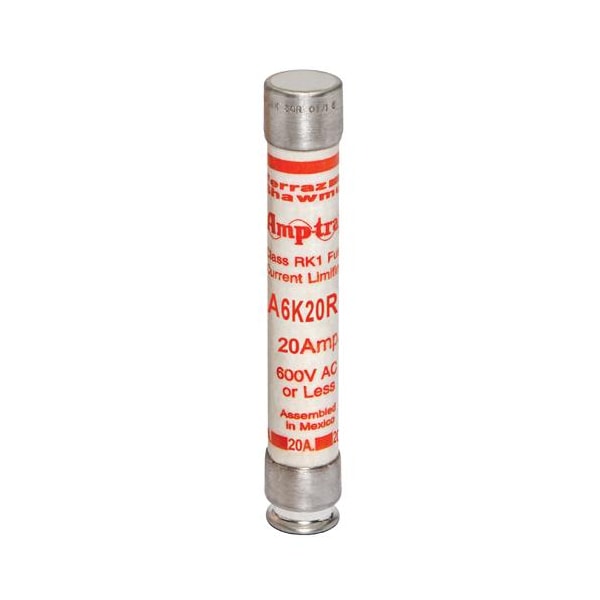

UL Class Fuse, RK1 Class, A6K-R Series, Fast-Acting, 20A, 600V AC
| Class | RK1 |
|---|---|
| Series | A6K-R |
| Speed | Fast-Acting |
| Amps | 20A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 300V DC |
| Interrupt Rating | 200kA at 600V AC, 20kA at 300V DC |
| Body Style | Ferrule |
| Body Material | Polytube |
| Length | 5 in |
| Diameter | 0.81 in |
| Fits Fuse Block Style | Rejection |
| Item | UL Class Fuse |
| Fuse Speed | Fast Acting |
| Weight | 0.18 lb |
| Mounting | Clip |
| Connection Material | Tin-Plated Copper |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| APPROVALS & STANDARDS | UL listed to standard 248-12 File E2137; CSA certified to standard C22.2 No. 248.12; Self-certified for DC per UL248 |
| Short Description | Fuse Amp- Series |
| Connection/Terminal Material | Tin-Plated Copper |
| Package Quantity | 1 |
