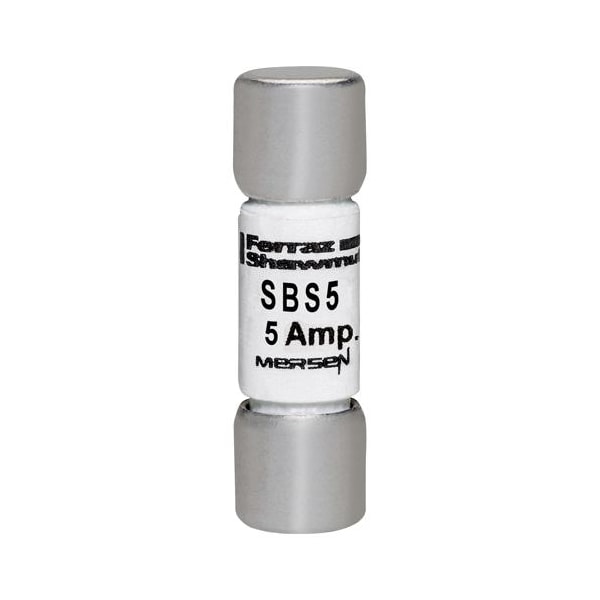

UL Class Fuse, SBS Series, Fast-Acting, 5A, 600V AC
| Series | SBS |
|---|---|
| Speed | Fast-Acting |
| Amps | 5A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | Not Rated |
| Interrupt Rating | 100kA at 600V AC |
| Body Style | Ferrule |
| Body Material | GMG |
| Length | 1.38 in |
| Diameter | 0.41 in |
| Item | UL Class Fuse |
| Fuse Speed | Fast Acting |
| Weight | 0.01 lb |
| Mounting | Clip |
| Connection Material | Tin-Plated Copper |
| APPROVALS & STANDARDS | UL Listed to standard 248-14 File E33925; CSA Certified to Standard C22.2 No. 248.14 |
| Connection/Terminal Material | Tin-Plated Copper |
| Short Description | Fuse 600V 5A Fast-Acting Midget SBS Series |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| Package Quantity | 1 |
