UL Class Fuse, T Class, A3T Series, Fast-Acting, 300A, 300V AC, Non-Indicating
| Class | T |
|---|---|
| Series | A3T |
| Speed | Fast-Acting |
| Amps | 300A |
| AC Voltage Rating | 300V AC |
| DC Voltage Rating | 160V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 300V AC, 50kA at 160V DC |
| Body Style | Blade |
| Body Material | GMG |
| Length | 2-1/2 in |
| Diameter | 1.33 in |
| Equivalent Brand and Series | Bussmann JJN, Edison TJN, Littelfuse JLLN, Mersen A3T |
| Equivalent Series | A3T, JJN, JLLN, TJN |
| Fits Fuse Block Style | Non-Rejection |

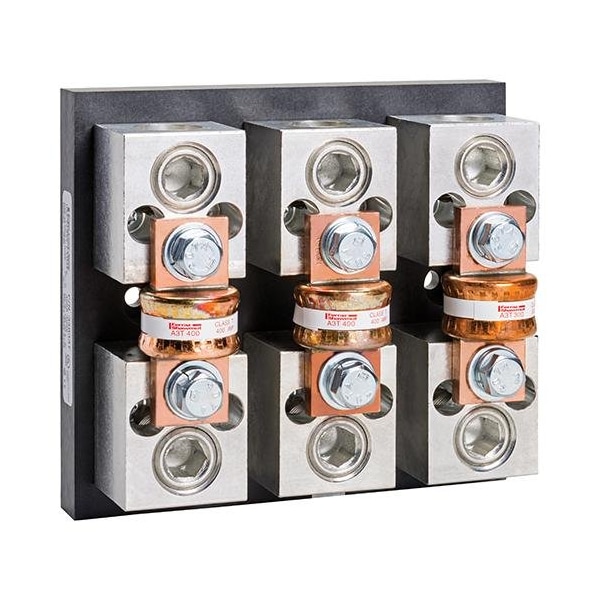

| Compatible Fuse Block Series | 3TFB, 6TFB |
| Item | UL Class Fuse |
| Rejection / Nonrejection | Nonrejection |
| Standards | UL/CSA |
| Length (Straight Wireway) | 2-3/4 in |
| Weight | 0.29 lb |
| Mounting | Bolted |
| Connection Material | Copper |
| Element | Single |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| APPROVALS & STANDARDS | UL listed to standard 248-15 File E2137; CSA certified to standard C22.2 no. 248.15; DC listed to UL standard 248 |
| Fuse Holder Code | BD |
| Short Description | Class T A3T Series, Fuse Amp-Trap® 300V 300A Fast-Acting |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Speed | Fast Acting |
| Connection/Terminal Material | Copper |
| Package Quantity | 1 |
