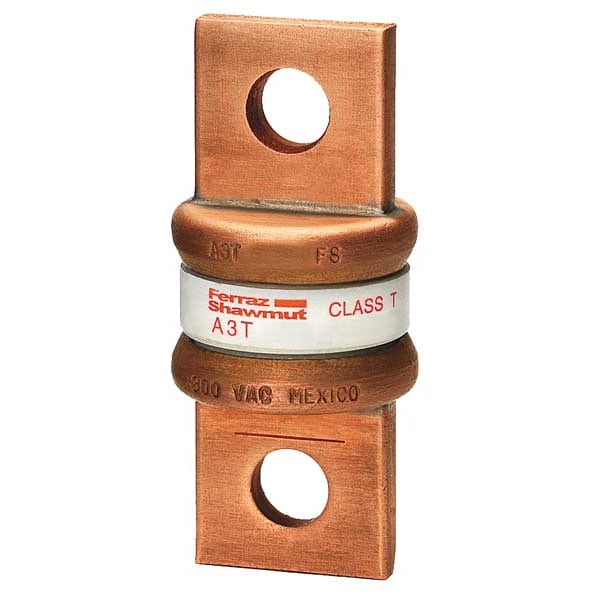

UL Class Fuse, T Class, A3T Series, Very Fast-Acting, 200A, 300V AC, Non-Indicating
| Class | T |
|---|---|
| Series | A3T |
| Speed | Very Fast-Acting |
| Amps | 200A |
| AC Voltage Rating | 300V AC |
| DC Voltage Rating | 160V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 300V AC, 50kA at 160V DC |
| Body Style | Blade |
| Body Material | Melamine, Glass |
| Length | 2.44 in |
| Diameter | 1.06 in |
| Equivalent Brand and Series | Bussmann JJN, Edison TJN, Littelfuse JLLN, Mersen A3T |
| Equivalent Series | A3T, JJN, JLLN, TJN |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | 3TFB, 6TFB |
| Item | UL Class Fuse |
| Rejection / Nonrejection | Nonrejection |
| Standards | UL/CSA |
| Mounting | Bolted |
| Element | Single |
| Connection Material | Copper |
| Weight | 0.18 lb |
| Connection/Terminal Material | Copper |
| Fuse Holder Code | BC |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Speed | Very Fast Acting |
| Short Description | Class T A3T Series, Fuse Amp-Trap® 300V 200A Fast-Acting |
| APPROVALS & STANDARDS | UL listed to standard 248-15 File E2137; CSA certified to standard C22.2 no. 248.15; DC listed to UL standard 248 |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Package Quantity | 1 |
