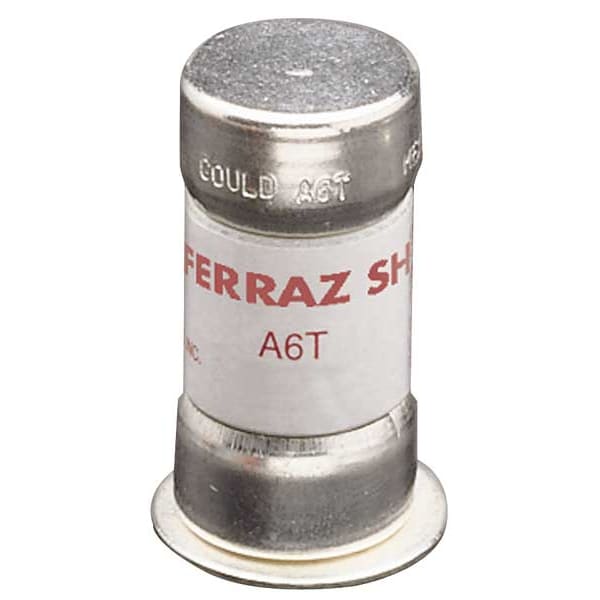

UL Class Fuse, T Class, A6T Series, Very Fast-Acting, 60A, 600V AC, Non-Indicating
| Class | T |
|---|---|
| Series | A6T |
| Speed | Very Fast-Acting |
| Amps | 60A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 300V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 300V DC, 200kA at 600V AC |
| Body Style | Cylindrical |
| Body Material | Melamine, Glass |
| Length | 1.57 in |
| Diameter | 0.81 in |
| Equivalent Brand and Series | Bussmann JJS, Littelfuse JLLS, Mersen A6T |
| Equivalent Series | A6T, JJS, JLLS |
| Fits Fuse Block Style | Non-Rejection |

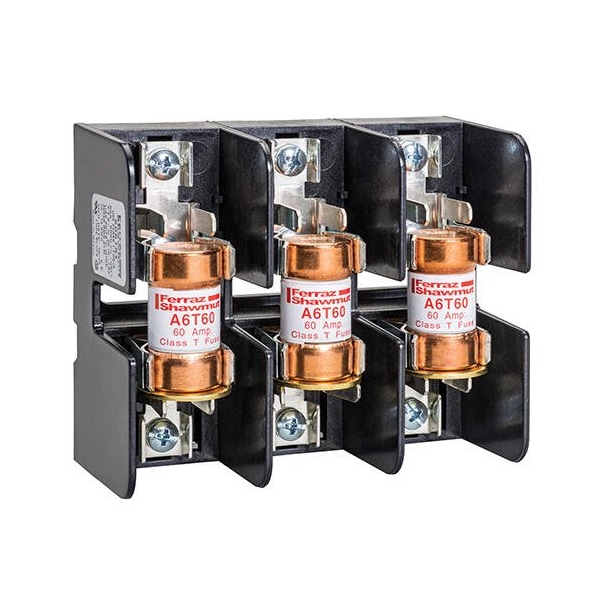

| Compatible Fuse Block Series | 6TFB, GFB |
| Item | UL Class Fuse |
| Standards | UL/CSA |
| Rejection / Nonrejection | Nonrejection |
| Weight | 0.08 lb |
| Element | Single |
| Mounting | Clip |
| Connection Material | Copper |
| APPROVALS & STANDARDS | UL listed to standard 248-15 File E2137; CSA certified to standard C22.2 no. 248.15; DC listed to UL standard 248 |
| Connection/Terminal Material | Copper |
| Fuse Speed | Very Fast Acting |
| Short Description | Class T A6T Series, Fuse Amp-Trap® 600V 60A Fast-Acting |
| Fuse Holder Code | BM |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Package Quantity | 1 |
