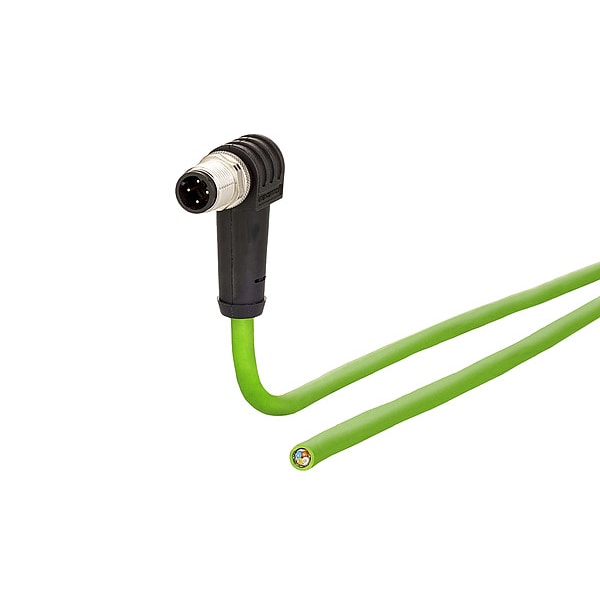

Cable M12
| Item | M12 Cable |
|---|---|
| Cable Length | 5 m |
| End 2 Number of Pins | Not Applicable |
| End 1 Connection Type | Plug |
| End 2 Connection Type | Bare Wire |
| IP Rating | IP6X, IPX7, IPX5, IPX8 |
| Standards | CE, DIN EN 50173-1, ISO/IEC 11801-1, REACH Compliant, RoHS Compliant |
| End 2 Coding | D |
| End 2 Mounting Orientation | Not Applicable |
| Maximum Operating Temperature | 194 deg F |
| Performance Category | Cat5, PROFINET |
| End 1 Gender | Male |
| Shielded | Yes |
| End 1 Coding | D |
| Number of Wires | 4 |
| End 1 Mounting Orientation | Angle |
| Cable Jacket Material | PUR |
| Minimum Operating Temperature | -22 deg F |
| Cable Jacket Color | Green |
| End 2 Gender | Not Applicable |
| Data Rate | 100 Mbits |
| Package Quantity | 1 |
