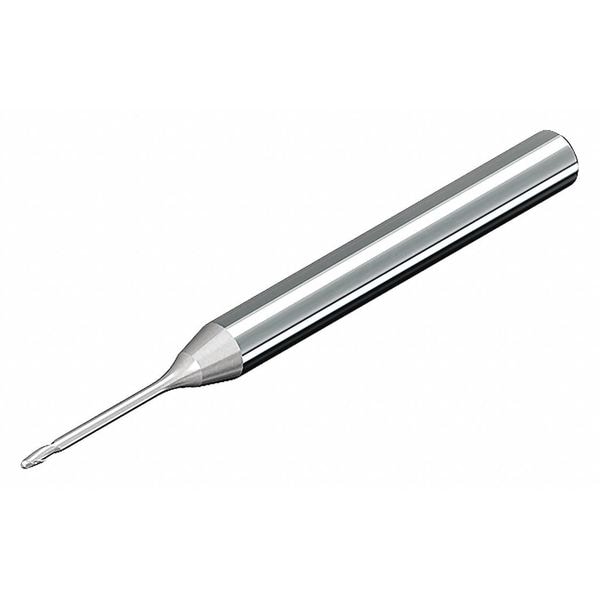

Ball End Mill, Uncoated, 1-1/2" L, Carbide
| Dimension Type | Decimal inch |
|---|---|
| Milling Diameter | 0.093 in |
| End Mill Material | Carbide |
| Number of Flutes | 2 |
| Length of Cut | 1/8 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | AAA |
| Shank Dia. | 1/8 in |
| Helix Angle | 20 deg |
| Milling Dia. | 3/32 in |
| Overall Length | 1-1/2 in |
| Hardened (H) Compatibility | Yes |
| Item | Ball End Mill |
| Non Ferrous (N) Compatibility | Yes |
| Cutting Direction | Right Hand |
| End Mill Style | Ball Nose |
| Steel (P) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| End Mill Application | Roughing/Finishing |
| List Number | BEF |
| Finish | Bright |
| Super Alloy (S) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Shank Type | Straight |
| Chip-Breaker | No |
| Finish - Machining | Bright |
| Material - Machining | Carbide |
| Material Grade - Machining | AAA |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | P, S, O |
| Shank Type - Machining | Straight |
| Drilling Tool Configuration | Individual |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application | Titanium, Nickel, Graphite, Steel |
| Package Quantity | 1 |
