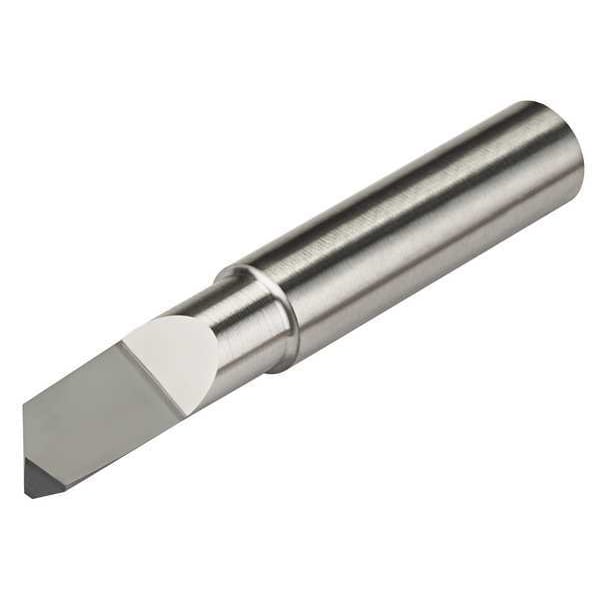

Boring Bar, 1-1/2 in L, Carbide
| Item | Boring Bar |
|---|---|
| Overall Length | 1-1/2 in |
| Shank Material | Carbide |
| Bore Depth | 1/8 in |
| Finish | Uncoated |
| Shank Dia. | 1/8 in |
| Material | C2 Micrograin Carbide |
| Bore Dia. | 0.025 in |
| Cutting Direction | Right Hand |
| Application | Boring |
| For Use With | Jig Bore Machines |
| Projection | 0.0025 in |
| Boring Bar Type | Helical Back Rake |
| Measurement System | Fractional Inch |
| Offset Point | 0.015 in |
| Center to Cutting Tip | 0.015 in |
| Shank Type - Machining | Straight with Three Flats |
| Max. Bore Depth | 1/8 in |
| Series | HBB |
| Cutting Application | Boring |
| Compatible with Product Type | Micro-Quik Tool Holder |
| Features | Helical Grind Provides Ideal Top Rake for Better Chip Control and Freer Cutting;On-Center Neck Design |
| Min. Bore Dia. | 0.025 in |
| Finish - Machining | Bright |
| Split Length | 0.05 in |
| Neck Dia. | 0.02 in |
| Material - Machining | Carbide |
| Package Quantity | 1 |
