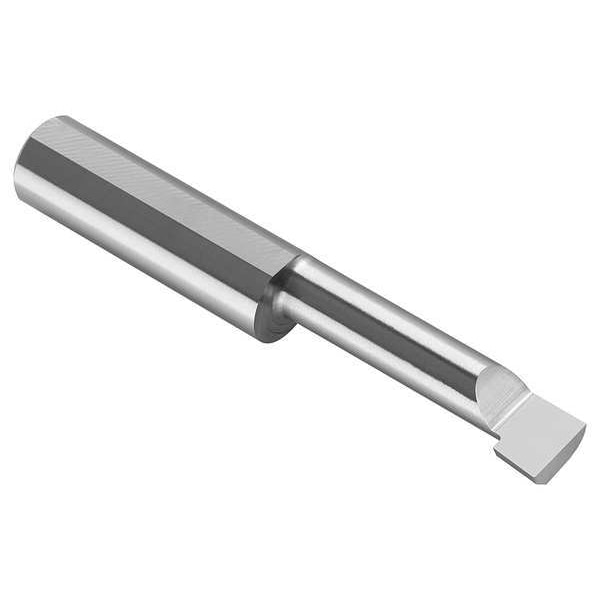

Boring Bar, 2-1/2 in L, Carbide
| Item | Boring Bar |
|---|---|
| Overall Length | 2-1/2 in |
| Shank Material | Carbide |
| Application | Boring |
| Radius | 0.0050 in to 0.0080 in |
| Angle | .080" |
| Cutting Direction | Left Hand |
| Material | C2 Micrograin Carbide |
| Bore Dia. | 0.32 in |
| Bore Depth | 0.6 in |
| Shank Dia. | 3/8 in |
| Finish | Uncoated |
| Projection | 0.08 in |
| Min. Bore Dia. | 0.32 in |
| Offset Point | 0.133 in |
| Finish - Machining | Bright |
| Boring Bar Type | Boring |
| Measurement System | Fractional Inch |
| Side Cutting Edge Angle | 6 deg |
| Max. Bore Depth | 0.6 in |
| Center to Cutting Tip | 0.133 in |
| Features | Corner Radius Profile;Split Geometry |
| Series | BBL |
| Cutting Application | Boring |
| Shank Type - Machining | Straight with Three Flats |
| Neck Dia. | 0.24 in |
| Split Length | 0.245 in |
| Groove Width | 0.2 in |
| Material - Machining | Carbide |
| Package Quantity | 1 |
