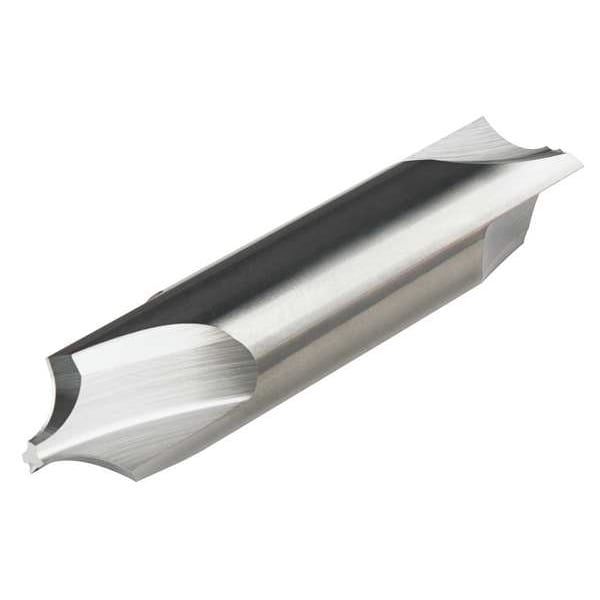

Carb End Mill, 0.0600 In, 3FL, CC, Uncoated
| Overall Length | 2-1/2 in |
|---|---|
| Shank Dia. | 1/4 in |
| Number of Flutes | 3 |
| Radius | 0.0938 in |
| Finish - Machining | Bright |
| Material - Machining | Carbide |
| Pilot Dia. | 0.06 in |
| Single End/Double End | Double Ended |
| Item | Corner Rounding End Mill |
| End Mill Style | Corner Rounding |
| Corner Radius | 3/32 in |
| Milling Dia. | 3/64 in |
| End Mill Application | Finishing, Roughing |
| Cutting Direction | Right Hand |
| End Mill Cutting Type | Center Cutting |
| Finish | Bright |
| List Number | CRE |
| Dimension Type | Decimal inch |
| End Mill Material | Carbide |
| Grade | C2 Micro Grain |
| Milling Diameter | 0.06 in |
| Cutting Direction - Machining | Right Hand |
| Chamfer Width | 0.005 in |
| Measurement System | Fractional Inch |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Steel, Magnesium |
| Material Applications | Aluminum, Brass, Bronze, Copper, Ferrous Material |
| Primary Material Application ISO Code | K, P, N |
| Drilling Tool Configuration | Individual |
| Shank Type - Machining | Straight |
| Package Quantity | 1 |
