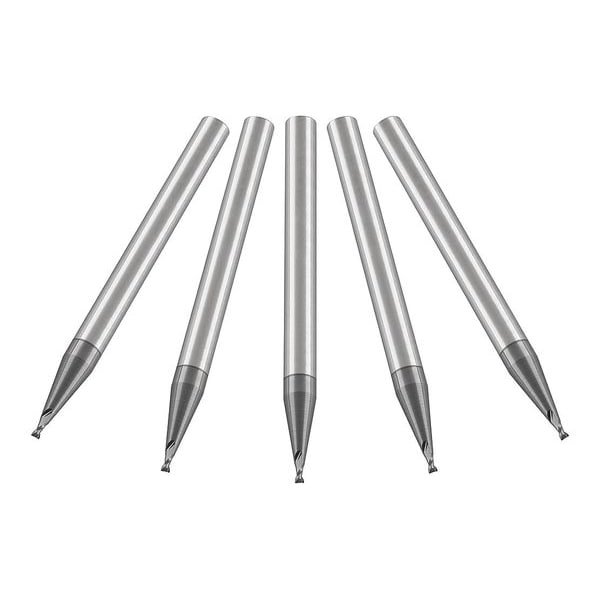

Carbide End Mill, 0.008, Cut 0.012, 2 FLT
| Measurement System | Decimal Inch |
|---|---|
| Overall Length | 1 1/2 in |
| Milling Diameter | 0.008 in |
| Number of Flutes | 2 |
| End Mill Style | Square |
| Finish | Bright |
| Length of Cut | 0.012 in |
| End Mill Cutting Type | Center Cutting |
| Dimension Type | Decimal inch |
| End Mill Application | Finishing |
| Grade | C2 Micro Grain |
| Single End/Double End | Single End |
| Shank Dia. | 1/8 in |
| Item | Square End Mill |
| Helix Angle | 30 deg |
| End Mill Material | Carbide |
| Cutting Direction | Right Hand |
| List Number | SME |
| Milling Dia. | 0.008 in |
| Drilling Tool Configuration | Individual |
| Material Grade - Machining | C2 Micrograin |
| Finish - Machining | Bright |
| Material - Machining | Carbide |
| Shank Type - Machining | Straight |
| Primary Material Application ISO Code | P, M, S |
| Primary Material Application | All Materials |
| Package Quantity | 1 |
