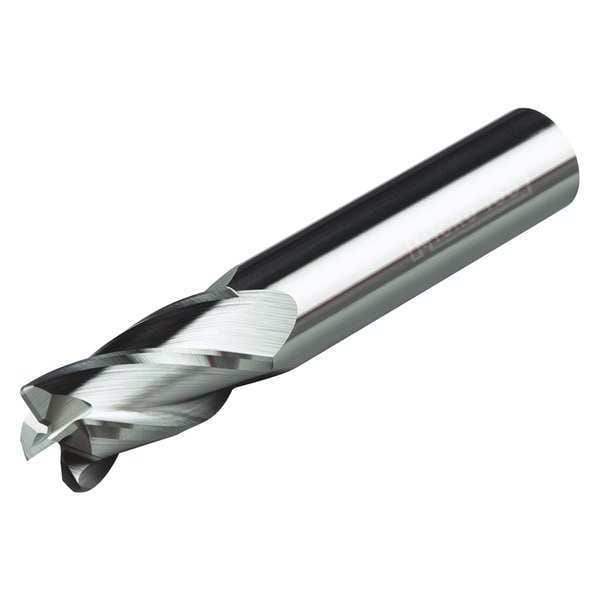

Carbide End Mill, Dia 3.5mm, Cut L 10mm
| Measurement System | Metric |
|---|---|
| Overall Length | 57.00 mm |
| Milling Diameter | 3.5 mm |
| Number of Flutes | 4 |
| End Mill Style | Square |
| Finish | AlTiN |
| Length of Cut | 10 mm |
| End Mill Cutting Type | Center Cutting |
| Helix Angle | 30 deg |
| List Number | AEMM |
| Dimension Type | Metric |
| End Mill Application | Finishing, Roughing |
| Shank Dia. | 6 mm |
| Milling Dia. | 3.5 mm |
| Cutting Direction | Right Hand |
| Item | Square End Mill |
| End Mill Material | Carbide |
| Grade | C2 Micro Grain |
| Single End/Double End | Single End |
| Drilling Tool Configuration | Individual |
| Material Grade - Machining | C2 Micrograin |
| Material - Machining | Carbide |
| Finish - Machining | AlTiN |
| Shank Type - Machining | Straight |
| Primary Material Application ISO Code | P, M, H, S |
| Primary Material Application | Hardened Steel, Nickel, Stainless Steel, Steel, Titanium, Tool and Die Steel |
| Package Quantity | 1 |
