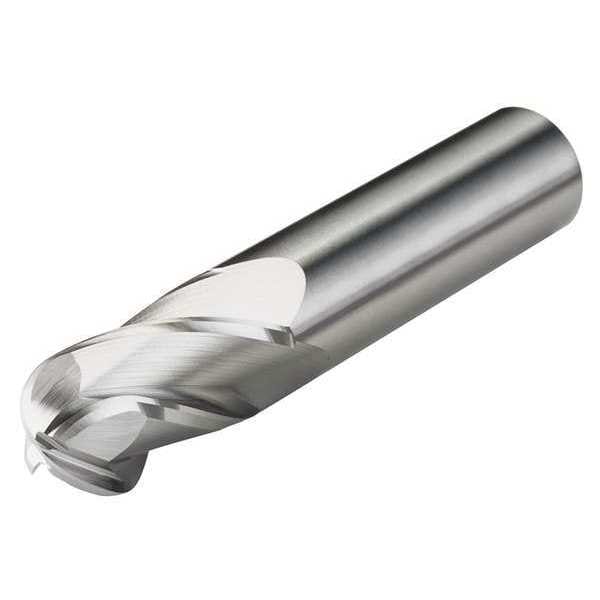

Carbide End Mill, Dia 3/8 In, Cut L 7/8 In
| Dimension Type | Fractional Inch |
|---|---|
| Milling Diameter | 3/8 in |
| End Mill Material | Carbide |
| Number of Flutes | 3 |
| Length of Cut | 7/8 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | C2 Micro Grain |
| Shank Dia. | 3/8 in |
| Helix Angle | 30 deg |
| Milling Dia. | 3/8 in |
| Shank Type | Straight |
| Cutting Direction | Right Hand |
| End Mill Style | Ball Nose |
| List Number | BEM |
| Finish | AlTiN |
| Item | Ball End Mill |
| Overall Length | 2-1/2 in |
| End Mill Application | Roughing/Finishing |
| Primary Material Application | Nickel, Stainless Steel, Steel, Titanium, Tool and Die Steel |
| Chip-Breaker | No |
| Material Grade - Machining | Micrograin |
| Drilling Tool Configuration | Individual |
| Primary Material Application ISO Code | P, M, S |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Straight |
| Finish - Machining | AlTiN |
| Material - Machining | Carbide |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
