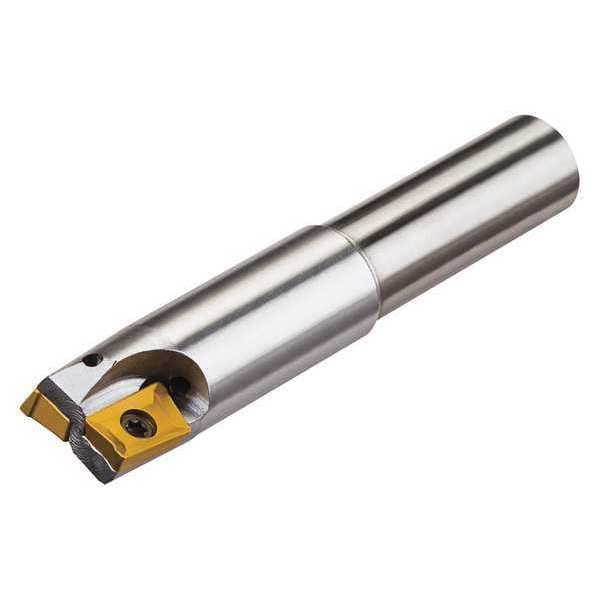

Indexable Square Shoulder End Mill, Coolant-Thru Milling Series, 5/8" Max Cut Dia
| Item | Indexable Square Shoulder End Mill |
|---|---|
| Series | Coolant-Thru Milling |
| Cutting Dia. | 5/8 in |
| Overall Length | 3 in |
| Number of Inserts Required | 2 |
| Insert Screw | 16 to 1,020 |
| Cutting Angle | 90 Degrees |
| Shank Dia. | 1/2 in |
| Insert Size | 50-2100 |
| Key | 16-1060 |
| Insert Style | APKT |
| Max. Cutting Dia. | 5/8 in |
| Side Cutting Edge Angle | 90 deg |
| Cutting Application | Square Shoulder Milling |
| Coolant Fed | Coolant Through |
| Includes | M2.5 x T-8 Torx Screw, Torx Key 16-1020 |
| Number of Coolant Holes | 2 |
| Toolholder Style | AAAP |
| Compatible Hardware | M2.5 x T-8 Torx Screw, Torx Key 16-1020 |
| Finish | UN |
| Length of Cut | 1-1/2 in |
| Number of Flutes | 2 |
| Cutting Edge Length | 1-1/2 in |
| Package Quantity | 1 |
