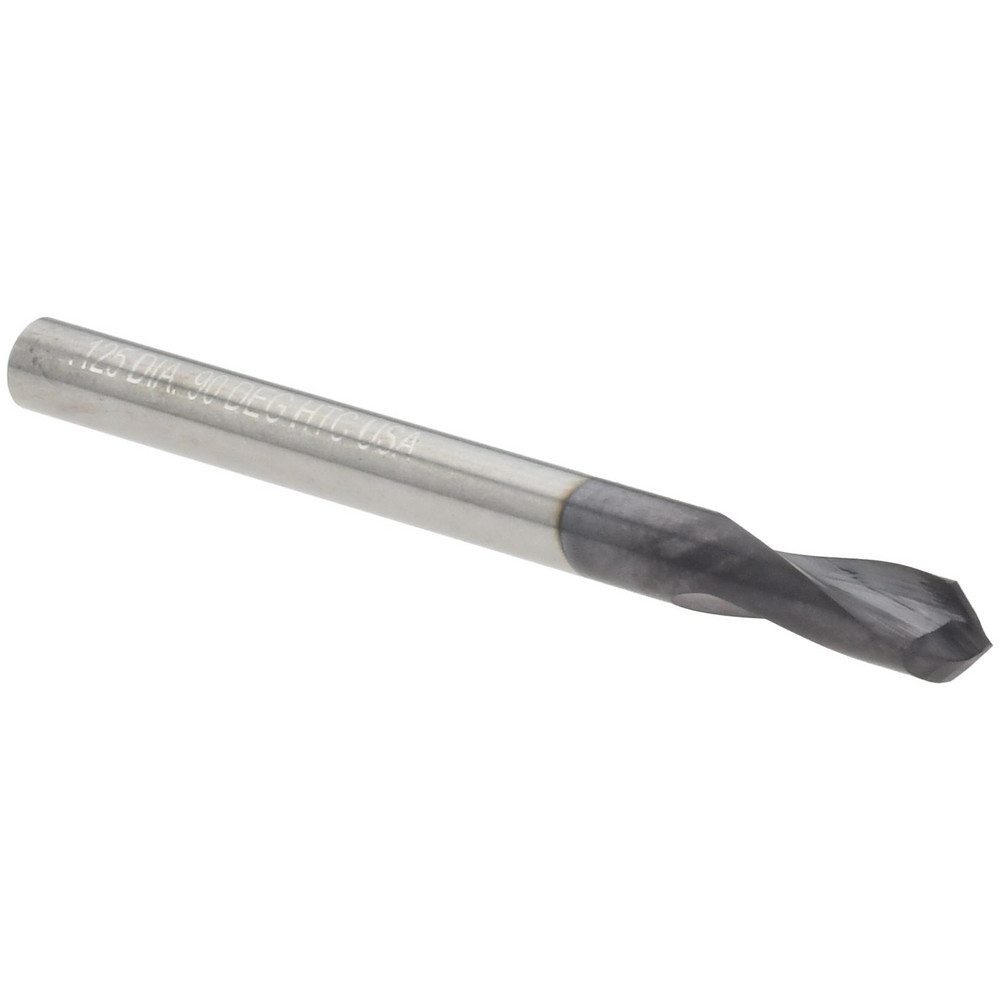

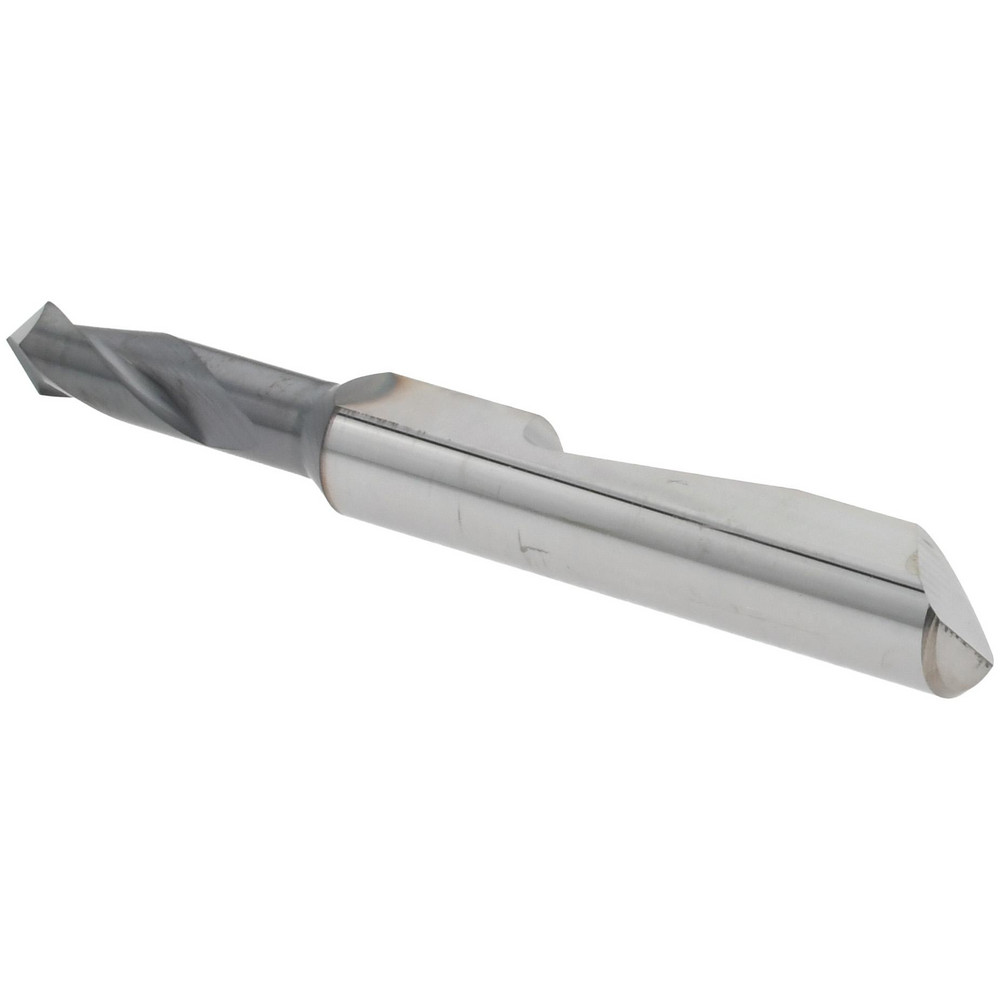

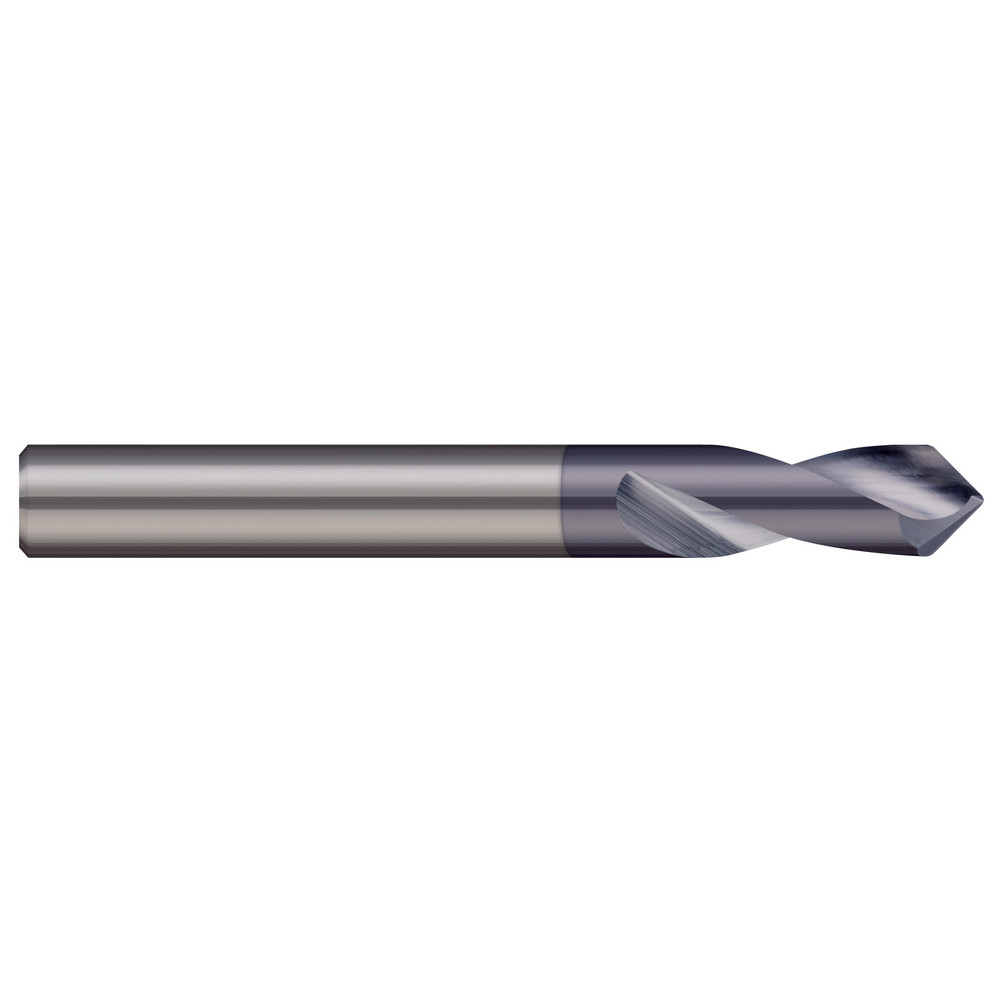

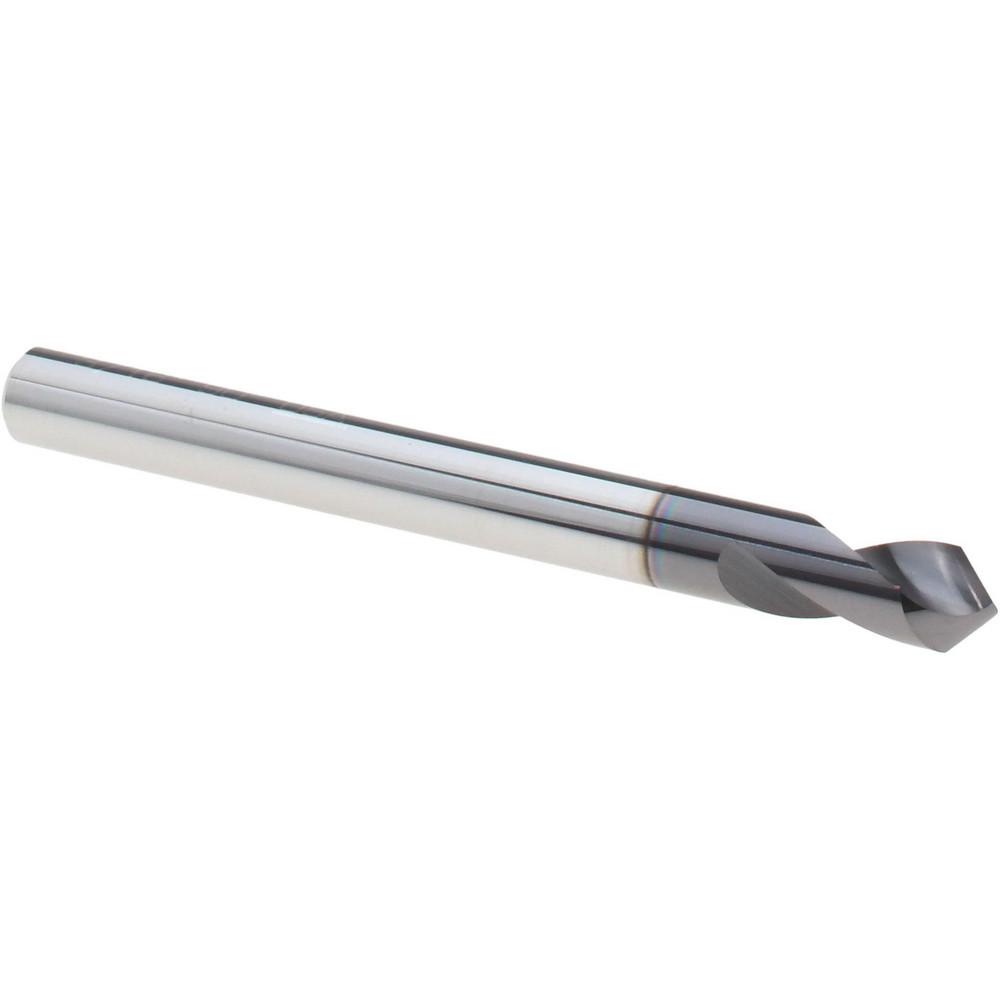

3/8" Flute Length, 3/16" Shank Dia, AlTiN Finish, Right Hand Cut, Series QSPD
| Drill Point Angle | 90 |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Inch) | 1-1/2 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Single/Double Ended | Single |
| Series | QSPD |
| Flute Length (Inch) | 3/8 |
| Cutting Diameter (Inch) | 1/8 |
| Shank Diameter (Fractional Inch) | 3/16 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Length (Decimal Inch) | 0.3750 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Micro-Quik |
| Tool Performance | High Performance |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thinning | Web Thinned |
| Web Thickness | 0.0100 |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 15278393 |
