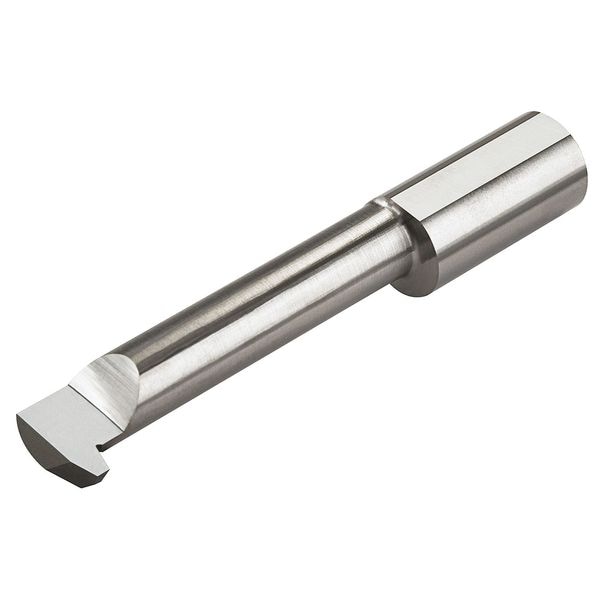

Threading Tool, 3 in L, Carbide
| Item | Threading Tool |
|---|---|
| Overall Length | 3 in |
| Shank Material | Carbide |
| Max. Depth | 2 in |
| Material | C2 Micrograin Carbide |
| Shank Dia. | 1/2 in |
| Finish | Uncoated |
| Projection | 0.12 in |
| Hole Dia. | 0.49 in |
| Cutting Direction | Right Hand |
| Style | Internal ACME Threading Tool |
| Center to Cutting Tip | 0.24 in |
| Max. Hole Depth | 2 in |
| Offset Point | 0.078 in |
| Thread Standard | ACME |
| Thread Direction | Right Hand |
| Flat Width | 0.069 in |
| Series | IAT |
| Min. Hole Dia. | 0.49 in |
| Features | Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible |
| Shank Type - Machining | Straight with Three Flats |
| Max. Threads per Inch | 5 |
| Measurement System | Fractional Inch |
| Cutting Application | Threading |
| Cutter Material | Carbide |
| Finish - Machining | Bright |
| Included Angle | 29 deg |
| Neck Dia. | 0.365 in |
| Offset | 5/64 in |
| Max. Bore Depth | 2 in |
| Groove Width | 5/32 in |
| Split Length | 0.275 in |
| Min. Bore Dia. | 0.49 in |
| Package Quantity | 1 |
