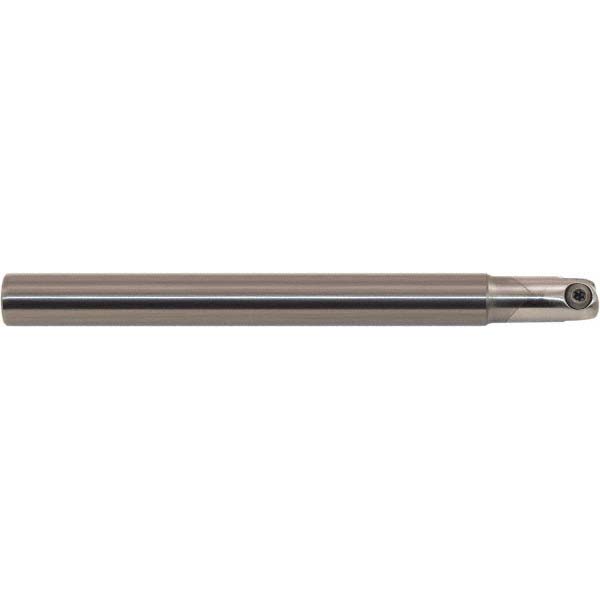

Uses BD-N, BD-R, BDS, FB-R, HF, TO & TOBD-NF Inserts, 3/4" Cylindrical Shank
| Cutting Diameter (Decimal Inch) | 0.7500 |
|---|---|
| Tool Material | Steel |
| Maximum Depth of Cut (Inch) | 1-1/2 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Inch - 0 Decimals) | 0.750 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Holding Method | Clamp |
| Compatible Insert Style | BDS; FB-R; TOBD-NF; BD-R; TO; BD-N; HF |
| Toolholder Style | CBCY |
| Overall Length (Inch) | 8 |
| Series | CBCY |
| Tool Application | Profile Milling |
| Weldon Flat | No |
| Projection (Inch) | 1-1/2 |
| Cutting Diameter (Inch) | 3/4 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Number of Ball Nose Inserts | 1 |
| UNSPSC Code | 27112803 |
| MSC Number | MSC# 44220085 |
