15PC SAE Tap and Die Set with Hex-LOK 2-in-1 Handle
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Tap and Die Set |
| Tap Finish | Black Oxide |
| Number of Pieces | 15 |
| Die Type | Hex |

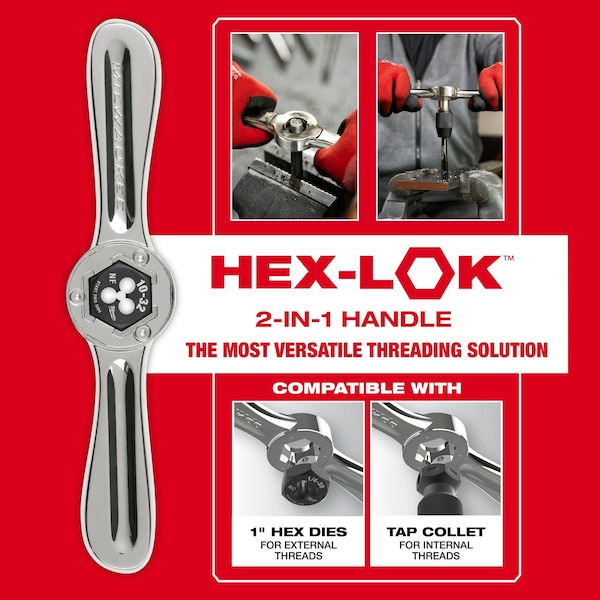

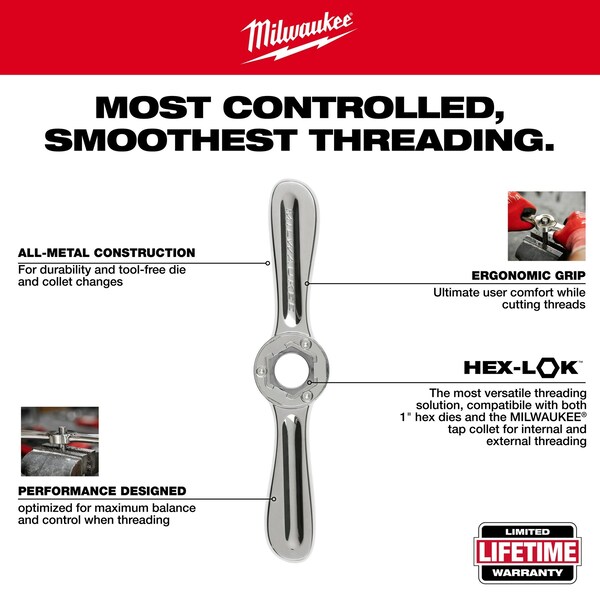

| Features | 2-in-1 Handle Compatibility Allows for Easy Snap in and Out, Tool-Free Die and Collet Changes, Drill Bits are Designed for use with Drill Drivers, For Best Results use with Cutting Fluid, Hex Dies can be used to Create or Repair Threads, Hex-lok(TM) 2-in-1 Handle is the most Versatile Threading Solution Designed for Tap and Die Threading, Includes Precision Machined Threading Accessories for the most Common Applications, Plug Style Tap is Designed for through Hole Threading, Taps and Dies Feature Long Lasting Laser Etch for the Clearest Markings |
| Tap Chamfer | Plug |
| Die Shape | Hex |
| Thread Type | SAE |
| Measurement System | SAE |
| Dimensions Standard | SAE |
| Finish - Machining | Black Oxide |
| Min. Tap Thread Size | 5/16-18 NC |

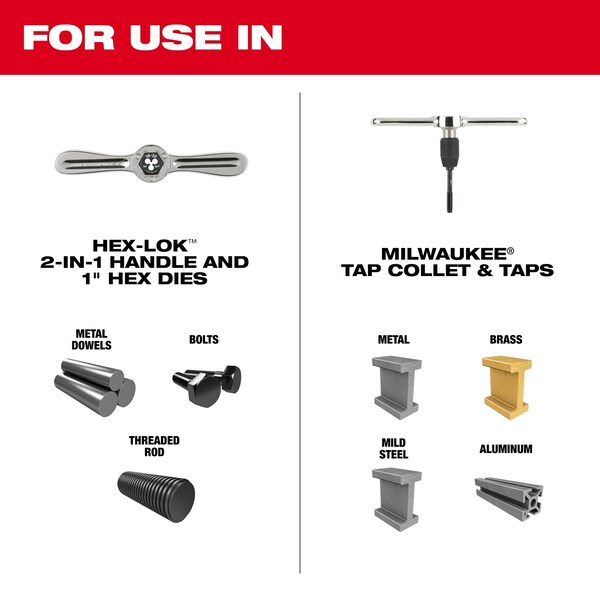

| Primary Material Application | Non-Ferrous, Ferrous |
| Tap Type | Plug |
| Die Hex Size | 1 in |
| Drill Bit Size | #7, 27/64", 5/16", F |
| Number Of Taps | 4 |
| Tap Sizes Included | 1/2 in-13 NC, 1/4 in-20 NC, 3/8 in-16 NC, 5/16 in-18 NC |

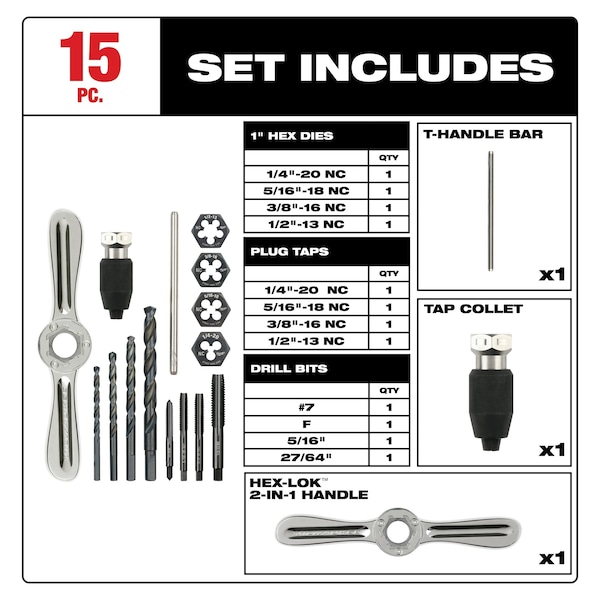

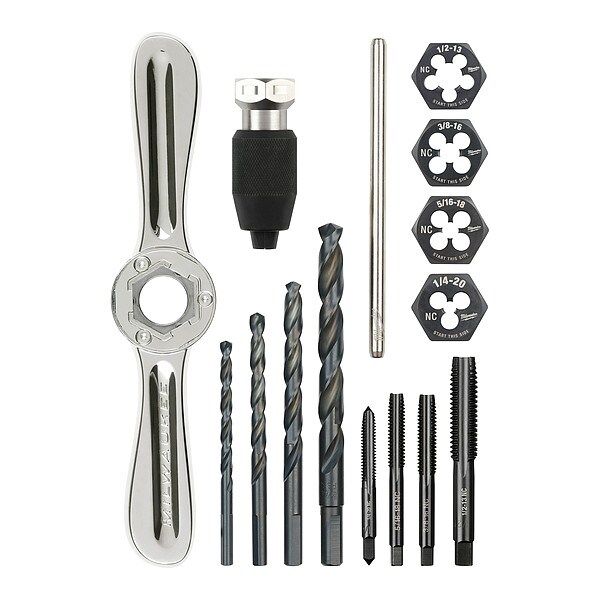

| Thread Sizes Included | #7 Drill Bit, 1/2-13 NC Straight Flute Plug Tap, 1/2-13 NC, 1 in Hex Threading Die, 1/4-20 NC Straight Flute Plug Tap, 1/4-20 NC, 1 in Hex Threading Die, 27/64 in Drill Bit, 3/8-16 NC Straight Flute Plug Tap, 3/8-16 NC, 1 in Hex Threading Die, 5/16 in Drill Bit, 5/16-18 NC Straight Flute Plug Tap, 5/16-18 NC, 1 in Hex Threading Die, F Drill Bit |
| Max. Tap Thread Size | 1/2-13 NC |
| Max. Die Thread Size | 1/2-13 NC |
| Die Finish | Black Oxide |
| Number of Dies in Set | 4 |
| Threads per Inch | 13, 16, 18, 20 |
| Material - Machining | Metal |
| Tap Overall Length | 11.0000 in |
| Thread Standard | SAE |
| Die Thread Sizes Included | 1/2-13 NC, 1/4-20 NC, 3/8-16 NC, 5/16-18 NC |
| Package Quantity | 1 |
