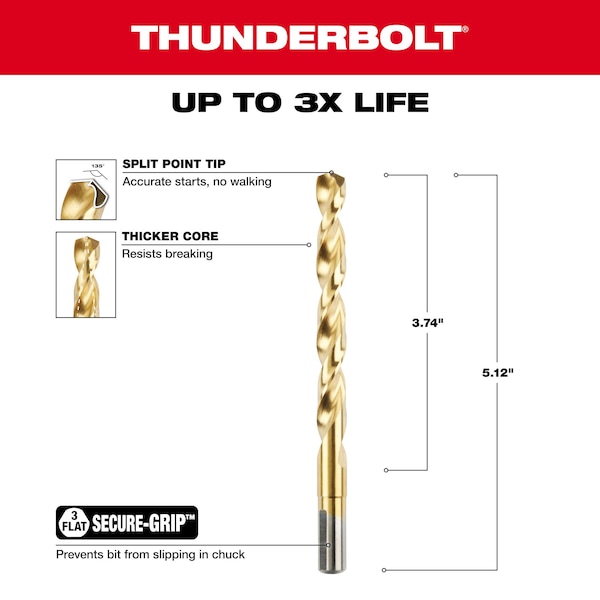

25/64" Thunderbolt Titanium Coated Drill Bit
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Hex Shank Drill Bit |
| Impact Rated | No |
| Overall Length | 5-1/8 in |
| Cutting Direction | Right Hand |
| Drill Bit Size | 25/64 in |
| Material | Steel |
| Drill Bit Point Angle | 135 deg |
| Features | Split Point, Thunderbolt(R) Web, Parabollic Flute |
| Decimal Size | 0.3594 in |
| Drilling Depth | 3-3/4 in |
| Shank Dia. | 25/64 in |
| Drill Bit Dimension Type | Fractional Inch |
| Shank Shape | Round |
| Finish | Titanium |
| Drill Bit Finish | TiN |
| Drill Bit Material | High Speed Steel |
| Decimal Equivalent | 0.3906 |
| Standards | Not Rated |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 3-3/4 in |
| Shank Type - Machining | Straight |
| Flute Type | Spiral |
| Flute Length | 3-3/4 in |
| Drill Bit Point Type | Split Point |
| Measurement System | Fractional Inch |
| Depth:Dia. Ratio | 10 xD |
| Finish - Machining | Titanium |
| Coolant Fed | Non-Coolant Through |
| Drill Length Class | Jobber Length |
| Package Quantity | 1 |
