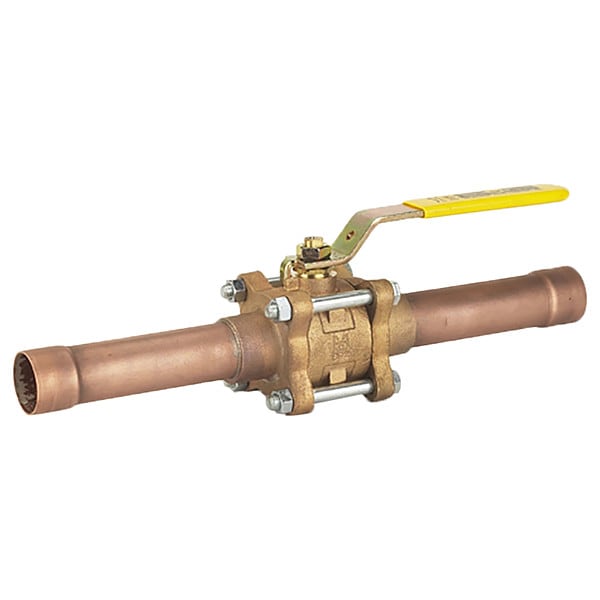

Manual 2-Way Ball Valve, NPT, Bronze
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Manual Two-Way Ball Valve |
| Valve Structure | 3-Piece |
| Body Material | Bronze |
| Max. Pressure | 600 psi |
| Pipe Size | 3/4 in |
| Handle Type | Lever |
| Body Style | 3-piece, 2 way |
| Max. Steam Pressure | 150 SWP |
| Port | Full |
| Stem Type | Blowout Resistant |
| Body Seal Material | RPTFE |
| Features | Oxygen Clean |
| Stem Material | Brass |
| Ball Material | Chrome-Plated Brass |
| Handle Material | PVC, Zinc-Plated Steel |
| Overall Length | 13.92 in |
| Seal Material | RPTFE |
| Connection Type | Tube x Tube |
| Tube Size | 3/4 in |
| Seat Material | RPTFE |
| Standards | NFPA 99C |
| Connection Gender - Side 2 | Male |
| Cleaned and Bagged | Valve Cleaned and Bagged |
| Vented Ball Valve | Not Applicable |
| Average Surface Roughness (Ra) | Not Applicable |
| Connection Size - Side 2 | 3/4 in |
| For Media | Gas |
| Included Mounting | Not Applicable |
| Maximum Pressure - Steam | Not Rated |
| Connection Gender - Side 1 | Male |
| ANSI Flange Class | Not Applicable |
| Coefficient of Volume (Cv) | 31 |
| Handle Length | 4-1/2 in |
| Operating Temperature - Minimum | -20 deg F |
| Operating Temperature - Maximum | 400 deg F |
| Valve Ways | 2-Way |
| Valve Construction | Three-Piece |
| Connection Size - Side 1 | 3/4 in |
| Vacuum Service Rating | -29.92 in Hg |
| Ball Port Style | Full Port |
| Maximum Pressure - Combustible Gas | Not Rated |
| Handle - Locking | Locking |
| Valve Body Style | Straight |
| Connection Type - Side 2 | Tube |
| 3-A Standard Compliance | Not Rated |
| Pipe Schedule Compatibility | Not Applicable |
| Maximum Pressure - Operating | 600 psi |
| Color - Valve Handle | Yellow |
| Connection Type - Side 1 | NPT |
| Nominal Valve Size | 3/4 in |
| Valve Series | BA-350-TE |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
