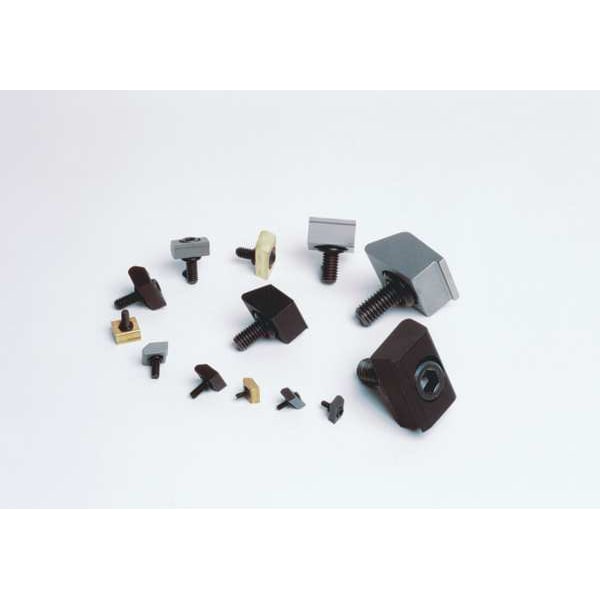

Clamps, 1/4-20, 3/4in, Blunt Edge, PK6
| Item | Pitbull Clamp |
|---|---|
| Clamp Style | Low Profile |
| Thread Size | 1/4"-20 |
| Thread Length | 3/4 in |
| Diameter | 1/4 in |
| Overall Depth | 3/4 in |
| Holding Force | 3600 lb |
| For Use With | Workholding |
| Overall Width | Not Applicable |
| Material | Steel |
| Drive Size | 1/4 in |
| Finish - Machining | Carbide |
| Material - Machining | Steel |
| Application | Workholding |
| Slot Size | 3/4 in |
| Resistance Properties | Rip-Out Resistant |
| Features | Extremely Low Bite, Positive Down Force |
| Clamp Type | Pitbull Clamp |
| Finish | Carbide |
| Number of Clamps | 6 |
| Clamp Body Material | Steel |
| Overall Length | Not Applicable |
| Bolt Thread Size | 1/4"-20 |
| Workpiece Tapping Distance | 0.3 in |
| Clamp Face Type | Blunt |
| Clamp Movement - Maximum | 0.024 in |
| Clamping Force - Maximum | 16,000 N |
| T-Slot Width | Not Applicable |
| Head Height | 0.28 in |
| Step Height | Not Applicable |
| Bolt Thread Length | 3/4 in |
| Step Depth | Not Applicable |
| Head Width | 3/4 in |
| Machinable Width - Maximum | Not Applicable |
| Measurement System | Inch |
| Series | Pitbull |
| Clamping Face Material | Steel |
| Clamp Body Slot Length | Not Applicable |
| Package Quantity | 6 |
