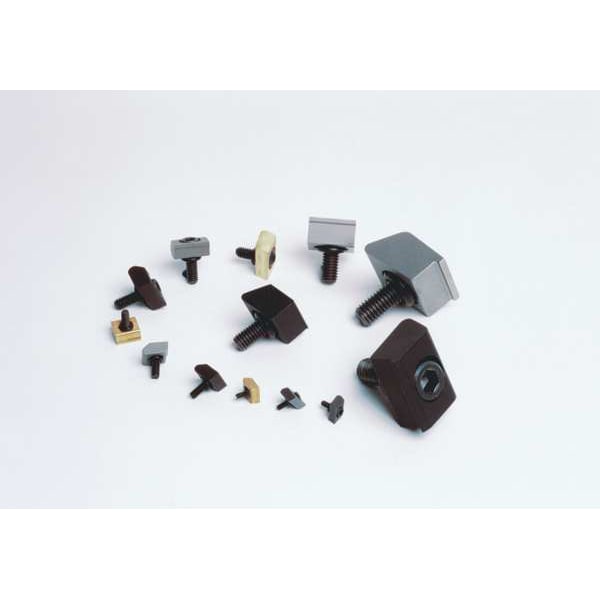

Clamps, 8-32, 1/2in, Blunt Edge, PK8
| Item | Pitbull Clamp |
|---|---|
| Clamp Style | Low Profile |
| Thread Size | #8-32 |
| Thread Length | 1/2 in |
| Overall Depth | 1/2 in |
| For Use With | Workholding |
| Holding Force | 1500 lb |
| Material | Steel |
| Diameter | 11/64 in |
| Overall Width | Not Applicable |
| Drive Size | 0.164 in |
| Slot Size | 1/2 in |
| Features | Extremely Low Bite, Positive Down Force |
| Application | Workholding |
| Finish - Machining | Carbide |
| Material - Machining | Steel |
| Resistance Properties | Rip-Out Resistant |
| Clamp Type | Pitbull Clamp |
| Bolt Thread Size | #8-32 |
| Overall Length | Not Applicable |
| Finish | Carbide |
| Measurement System | Inch |
| Step Depth | Not Applicable |
| Clamp Body Material | Steel |
| Clamp Movement - Maximum | 0.016 in |
| T-Slot Width | Not Applicable |
| Clamping Face Material | Steel |
| Number of Clamps | 8 |
| Head Height | 0.187 in |
| Workpiece Tapping Distance | 0.2 in |
| Series | Pitbull |
| Bolt Thread Length | 1/2 in |
| Machinable Width - Maximum | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Clamp Face Type | Blunt |
| Step Height | Not Applicable |
| Clamping Force - Maximum | 6,675 N |
| Head Width | 1/2 in |
| Package Quantity | 8 |
