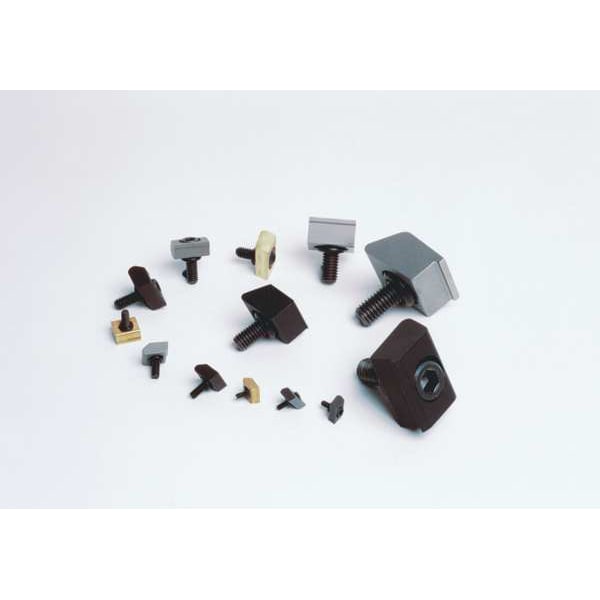

Clamps, M2.5, 8mm, Knife Edge, PK8
| Item | Pitbull Clamp |
|---|---|
| Clamp Style | Low Profile |
| Thread Size | M2.5 |
| Thread Length | 8 mm |
| Material | Steel |
| Overall Depth | 9.52 mm |
| Overall Width | 9.52 in |
| Diameter | 2.5 mm |
| For Use With | Workholding |
| Holding Force | 2800 N |
| Drive Size | 2.5 mm |
| Application | Workholding |
| Features | Extremely Low Bite, Positive Down Force |
| Slot Size | 9.52 mm |
| Finish - Machining | Carbide |
| Resistance Properties | Rip-Out Resistant |
| Clamp Type | Pitbull Clamp |
| Material - Machining | Steel |
| Finish | Carbide |
| Clamp Body Material | Steel |
| Workpiece Tapping Distance | 3.81 mm |
| Overall Length | Not Applicable |
| Clamping Face Material | Steel |
| Head Width | 9.52 mm |
| Bolt Thread Length | 8 mm |
| Measurement System | Metric |
| Series | Pitbull |
| Clamp Body Slot Length | Not Applicable |
| Step Height | Not Applicable |
| Number of Clamps | 8 |
| Bolt Thread Size | M2.5 |
| Clamping Force - Maximum | 2,800 N |
| Step Depth | Not Applicable |
| Clamp Movement - Maximum | 0.19 mm |
| T-Slot Width | Not Applicable |
| Machinable Width - Maximum | Not Applicable |
| Clamp Face Type | Knife |
| Head Height | 3.55 mm |
| Package Quantity | 8 |
