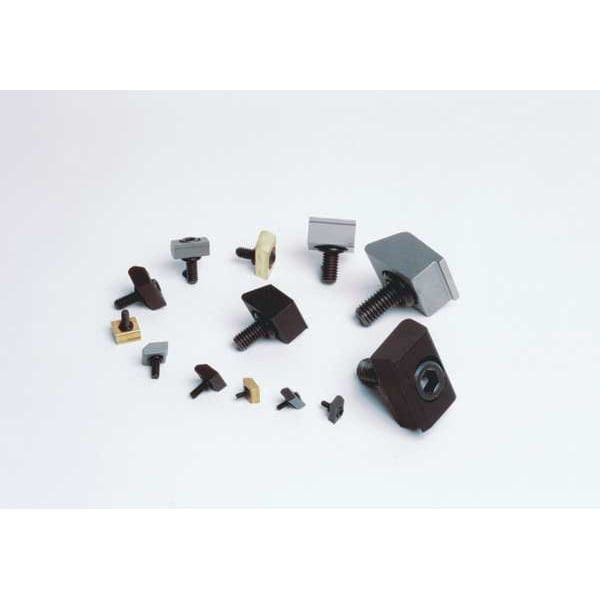

Clamps, M4, 12mm, Brass Blunt Edge, PK8
| Item | Pitbull Clamp |
|---|---|
| Clamp Style | Low Profile |
| Thread Size | M4 |
| Thread Length | 12 mm |
| Holding Force | 1750 N |
| Diameter | 4 mm |
| Overall Width | Not Applicable |
| Overall Depth | 12.7 mm |
| For Use With | Workholding |
| Material | Steel |
| Drive Size | 4 mm |
| Slot Size | 12.7 mm |
| Features | Extremely Low Bite, Positive Down Force |
| Resistance Properties | Rip-Out Resistant |
| Application | Workholding |
| Finish - Machining | Carbide |
| Clamp Type | Pitbull Clamp |
| Finish | Carbide |
| Step Height | Not Applicable |
| Measurement System | Metric |
| Series | Pitbull |
| Workpiece Tapping Distance | 5.08 mm |
| Bolt Thread Length | 12 mm |
| Clamp Body Material | Brass |
| Bolt Thread Size | M4 |
| Head Width | 12.7 mm |
| T-Slot Width | Not Applicable |
| Clamp Face Type | Blunt |
| Number of Clamps | 8 |
| Overall Length | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Step Depth | Not Applicable |
| Clamping Force - Maximum | 1,750 N |
| Clamp Movement - Maximum | 0.406 mm |
| Machinable Width - Maximum | Not Applicable |
| Head Height | 4.75 mm |
| Clamping Face Material | Brass |
| Package Quantity | 8 |
