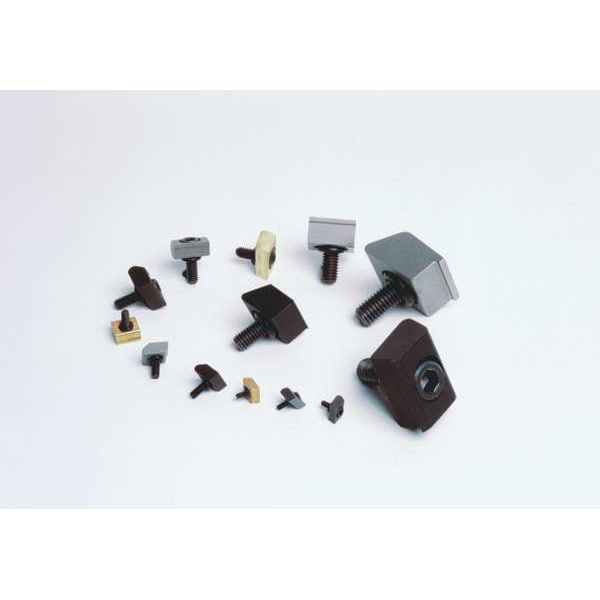

Clamps, M6, 16mm, Blunt Edge, PK6
| Item | Pitbull Clamp |
|---|---|
| Clamp Style | Low Profile |
| Thread Size | M6 |
| Thread Length | 16 mm |
| Holding Force | 16,000 N |
| Overall Depth | 19.05 mm |
| Overall Width | Not Applicable |
| For Use With | Workholding |
| Material | Steel |
| Diameter | 6 mm |
| Drive Size | 6 mm |
| Resistance Properties | Rip-Out Resistant |
| Features | Extremely Low Bite, Positive Down Force |
| Finish - Machining | Carbide |
| Material - Machining | Steel |
| Slot Size | 19.05 mm |
| Application | Workholding |
| Clamp Type | Pitbull Clamp |
| Finish | Carbide |
| Machinable Width - Maximum | Not Applicable |
| Measurement System | Metric |
| Head Width | 19.05 mm |
| Step Height | Not Applicable |
| Workpiece Tapping Distance | 7.62 mm |
| Overall Length | Not Applicable |
| Clamping Face Material | Steel |
| Clamp Movement - Maximum | 0.61 mm |
| Bolt Thread Length | 16 mm |
| Step Depth | Not Applicable |
| T-Slot Width | Not Applicable |
| Clamp Face Type | Blunt |
| Bolt Thread Size | M6 |
| Clamping Force - Maximum | 16,000 N |
| Head Height | 7.11 mm |
| Series | Pitbull |
| Number of Clamps | 6 |
| Clamp Body Slot Length | Not Applicable |
| Clamp Body Material | Steel |
| Package Quantity | 6 |
