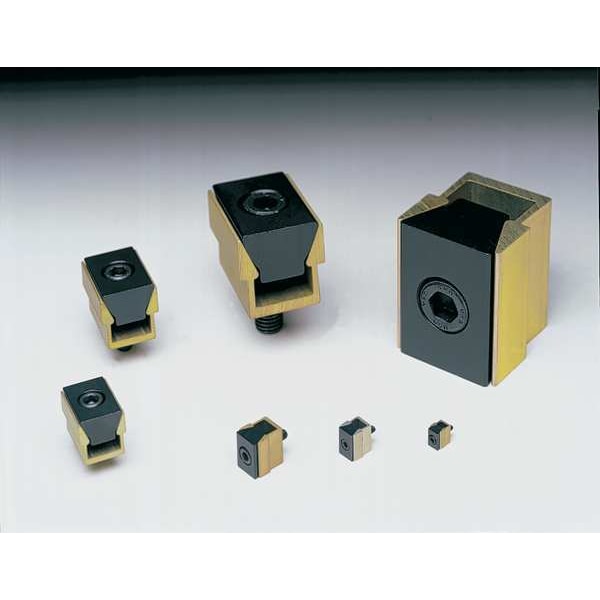

Clamps, Wedge, 1/4-20, 7/8in, PK6
| Item | Uniforce Clamp |
|---|---|
| Clamp Style | Wedge |
| Thread Size | 1/4"-20 |
| Thread Length | 7/8 in |
| Overall Height | 0.77 in |
| Overall Depth | 15/16 in |
| Holding Force | 1500 lb |
| Diameter | 1/4 in |
| Drive Size | 3/16 in |
| For Use With | Workholding |
| Material | Aluminum/Steel |
| Overall Width | 0.735 in |
| Slot Size | 0.94 in |
| Features | Compact and Economical Design, Minimizes Tool Changes |
| Application | Clamping Flat or Round Work Pieces |
| T-Slot Width | Not Applicable |
| Clamp Type | Wedge |
| For Use On | Pallet Changers |
| Overall Length | 0.94 in |
| Bolt Thread Length | 7/8 in |
| Series | Uniforce |
| Step Height | Not Applicable |
| Head Length | 0.94 in |
| Measurement System | Inch |
| Clamping Force - Maximum | 6,675 N |
| Machinable Width - Maximum | Not Applicable |
| Number of Clamps | 6 |
| Clamp Body Slot Length | Not Applicable |
| Head Width | 0.735 in |
| Clamping Face Material | Steel |
| Bolt Thread Size | 1/4"-20 |
| Clamp Face Type | Smooth |
| Clamp Body Material | Steel |
| Head Height | 0.77 in |
| Step Depth | Not Applicable |
| Clamp Movement - Maximum | Not Applicable |
| Package Quantity | 6 |
