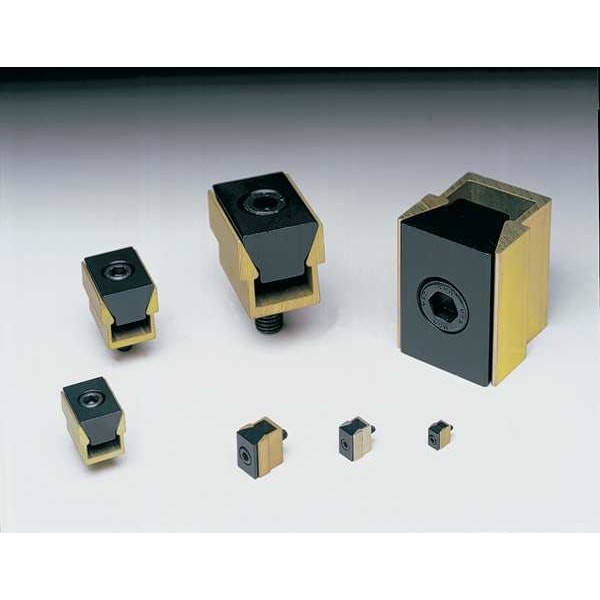

Clamps, Wedge, 4-40, 1/2inL., PK6
| Item | Uniforce Clamp |
|---|---|
| Clamp Style | Wedge |
| Thread Size | #4-40 |
| Thread Length | 1/2 in |
| Overall Width | 0.36 in |
| Diameter | 7/64 in |
| Overall Depth | 15/32 in |
| Overall Height | 0.38 in |
| Holding Force | 310 lb |
| For Use With | Workholding |
| Drive Size | 0.0938 in |
| Material | Aluminum/Steel |
| Slot Size | 0.47 in |
| T-Slot Width | Not Applicable |
| Application | Clamping Flat or Round Work Pieces |
| Overall Length | 0.47 in |
| For Use On | Pallet Changers |
| Features | Compact and Economical Design, Minimizes Tool Changes |
| Clamp Type | Wedge |
| Clamping Force - Maximum | 1,350 N |
| Clamp Face Type | Smooth |
| Head Height | 0.38 in |
| Series | Uniforce |
| Clamp Movement - Maximum | Not Applicable |
| Head Width | 0.36 in |
| Clamping Face Material | Steel |
| Clamp Body Slot Length | Not Applicable |
| Step Depth | Not Applicable |
| Machinable Width - Maximum | Not Applicable |
| Clamp Body Material | Steel |
| Number of Clamps | 6 |
| Bolt Thread Length | 1/2 in |
| Head Length | 0.47 in |
| Bolt Thread Size | #4-40 |
| Measurement System | Inch |
| Step Height | Not Applicable |
| Package Quantity | 6 |
