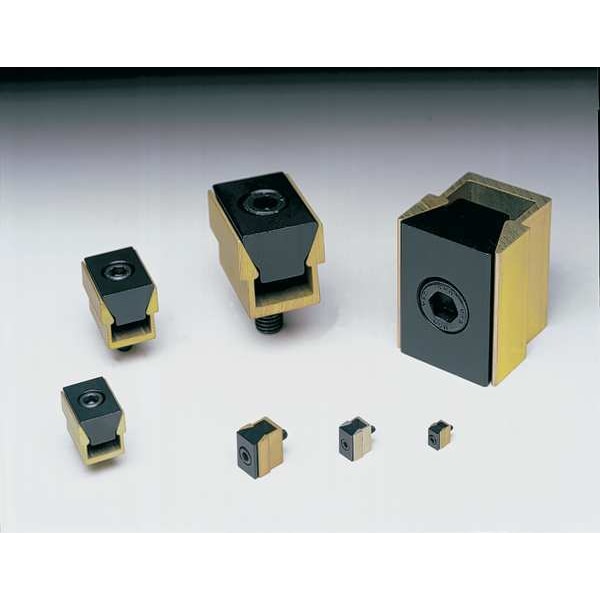

Clamps, Wedge, 8-32, 5/8inL., PK8
| Item | Uniforce Clamp |
|---|---|
| Clamp Style | Wedge |
| Thread Size | #8-32 |
| Thread Length | 5/8 in |
| Overall Width | 0.485 in |
| Diameter | 11/64 in |
| Material | Aluminum/Steel |
| Holding Force | 500 lb |
| Overall Depth | 5/8 in |
| For Use With | Workholding |
| Overall Height | 0.58 in |
| Drive Size | 0.1406 in |
| T-Slot Width | Not Applicable |
| Features | Compact and Economical Design, Minimizes Tool Changes |
| Clamp Type | Wedge |
| For Use On | Pallet Changers |
| Slot Size | 5/8 in |
| Overall Length | 5/8 in |
| Application | Clamping Flat or Round Work Pieces |
| Number of Clamps | 8 |
| Clamping Face Material | Steel |
| Clamping Force - Maximum | 2,225 N |
| Machinable Width - Maximum | Not Applicable |
| Clamp Face Type | Smooth |
| Step Depth | Not Applicable |
| Bolt Thread Size | #8-32 |
| Bolt Thread Length | 5/8 in |
| Series | Uniforce |
| Clamp Movement - Maximum | Not Applicable |
| Head Height | 0.58 in |
| Clamp Body Slot Length | Not Applicable |
| Clamp Body Material | Steel |
| Head Width | 0.485 in |
| Measurement System | Inch |
| Head Length | 5/8 in |
| Step Height | Not Applicable |
| Package Quantity | 8 |
