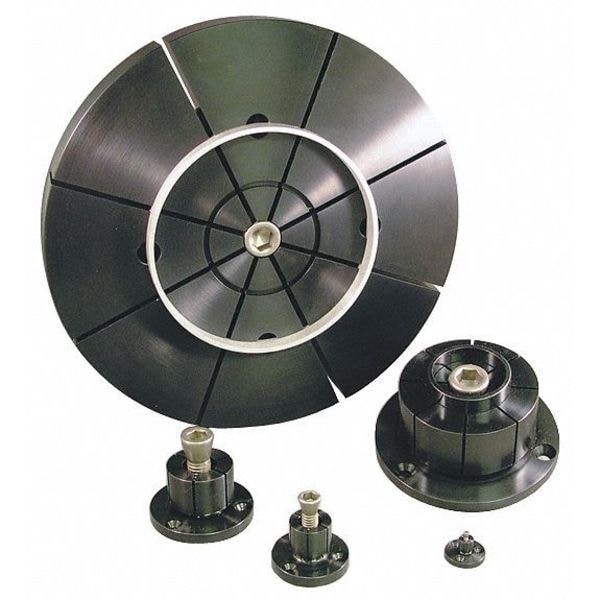

Fixture Clamp, ID Xpansion #6, M16, 45mm
| Item | ID Xpansion Clamp |
|---|---|
| Clamp Style | ID Xpansion #6 |
| Thread Size | M16 |
| Thread Length | 45 mm |
| Material | Steel |
| Overall Width | 75.5 mm |
| Overall Height | 39.6 mm |
| Diameter | 16 mm |
| Holding Force | 44,500 N |
| For Use With | Workholding |
| Drive Size | 16 mm |
| Includes | (3) Mounting Screws, (4) Mounting Screws with #9 and #10 |
| Material - Machining | Steel |
| Clamp Type | Expansion |
| Finish - Machining | Black Oxide |
| Application | Workholding |
| Features | Easily Machined to Size on Lathe or Mill, Low Profile |
| Slot Size | 75.5 mm |
| Clamping Face Material | Steel |
| Clamp Movement - Maximum | 0.38 mm |
| T-Slot Width | Not Applicable |
| Clamp Body Material | Steel |
| Clamping Force - Maximum | 44,500 N |
| Series | ID Xpansion |
| Overall Length | Not Applicable |
| Step Height | Not Applicable |
| Machinable Width - Maximum | 29.3 mm |
| Finish | Black Oxide |
| Head Width | 51.5 mm |
| Clamp Face Type | Smooth |
| Head Length | Not Applicable |
| Step Depth | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Head Height | 31.8 mm |
| Measurement System | Metric |
| Bolt Thread Length | 45 mm |
| Bolt Thread Size | M16 |
| Package Quantity | 1 |
