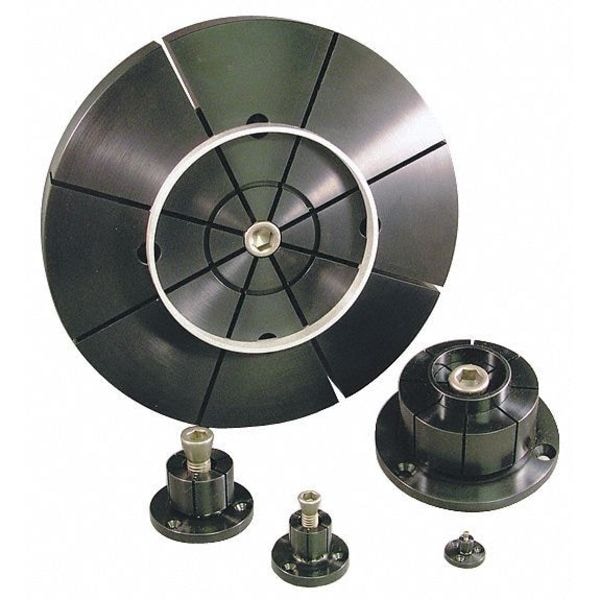

Fixture Clamp, ID Xpansion #8, 5/8-11, 2in
| Item | ID Xpansion Clamp |
|---|---|
| Clamp Style | ID Xpansion #8 |
| Thread Size | 5/8"-11 |
| Thread Length | 2 in |
| Holding Force | 10,000 lb |
| Diameter | 5/8 in |
| Overall Height | 1.79 in |
| For Use With | Workholding |
| Material | Steel |
| Overall Width | 5.232 in |
| Drive Size | 5/8 in |
| Includes | (3) Mounting Screws, (4) Mounting Screws with #9 and #10 |
| Material - Machining | Steel |
| Finish - Machining | Black Oxide |
| Slot Size | 5.232 in |
| Features | Easily Machined to Size on Lathe or Mill, Low Profile |
| Clamp Type | Expansion |
| Application | Workholding |
| Finish | Black Oxide |
| Clamp Movement - Maximum | 0.015 in |
| T-Slot Width | Not Applicable |
| Measurement System | Inch |
| Series | ID Xpansion |
| Clamp Face Type | Smooth |
| Step Height | Not Applicable |
| Machinable Width - Maximum | 1.15 in |
| Clamping Force - Maximum | 44,500 N |
| Bolt Thread Size | 5/8"-11 |
| Clamp Body Material | Steel |
| Clamping Face Material | Steel |
| Step Depth | Not Applicable |
| Head Height | 1.48 in |
| Bolt Thread Length | 2 in |
| Head Length | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Head Width | 4.06 in |
| Overall Length | Not Applicable |
| Package Quantity | 1 |
