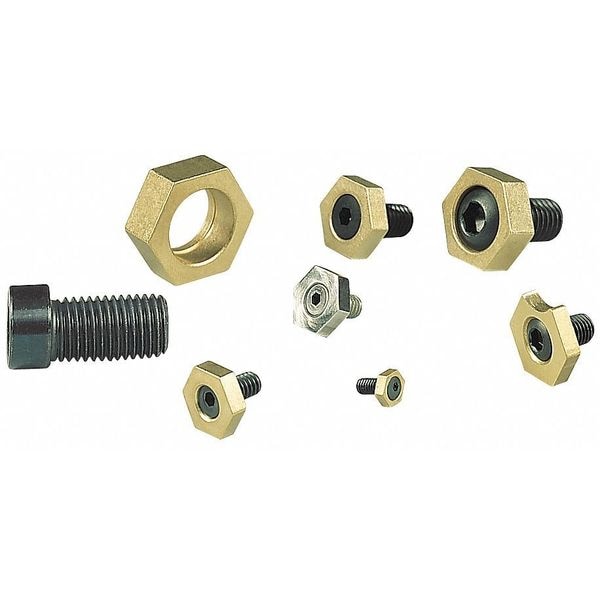

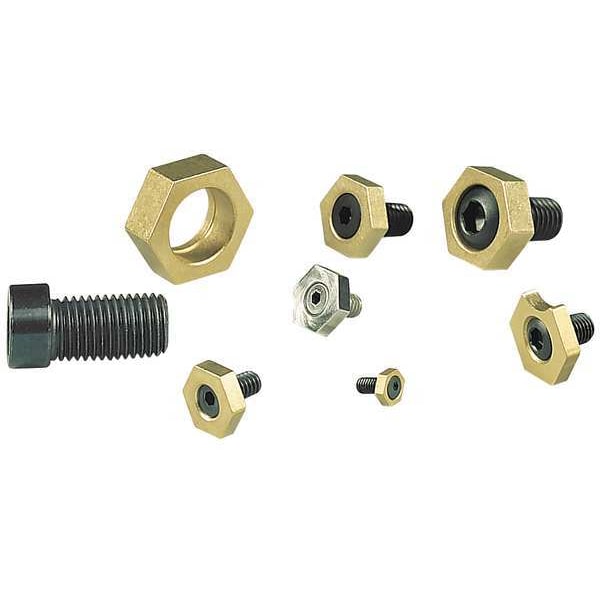

Fixture Clamps, Cam Action, 1/4-20, PK10
| Item | Fixture Clamp |
|---|---|
| Clamp Style | Cam Action |
| Thread Size | 1/4"-20 |
| Thread Length | 1/2 in |
| Diameter | 1/4 in |
| Drive Size | 1/8 in |
| Overall Width | Not Applicable |
| Overall Height | 0.66 in |
| For Use With | Workholding |
| Holding Force | 800 lb |
| Material | Brass/Steel |
| Slot Size | 5/8 in |
| Application | Workholding |
| Clamp Type | Fixture Clamp |
| Features | Low Profile, Simple Design |
| Clamp Body Material | Steel |
| Series | Not Applicable |
| Machinable Width - Maximum | Not Applicable |
| Bolt Thread Size | 1/4"-20 |
| Clamp Face Type | Smooth |
| Bolt Thread Length | 1/2 in |
| Clamp Body Slot Length | Not Applicable |
| Workpiece Tapping Distance | 0.308 in |
| Step Height | Not Applicable |
| Head Width | 5/8 in |
| Step Depth | Not Applicable |
| T-Slot Width | Not Applicable |
| Head Height | 0.19 in |
| Overall Length | Not Applicable |
| Clamp Movement - Maximum | 0.04 in |
| Number of Clamps | 10 |
| Clamping Force - Maximum | 3,558 N |
| Measurement System | Inch |
| Clamping Face Material | Brass |
| Package Quantity | 10 |
