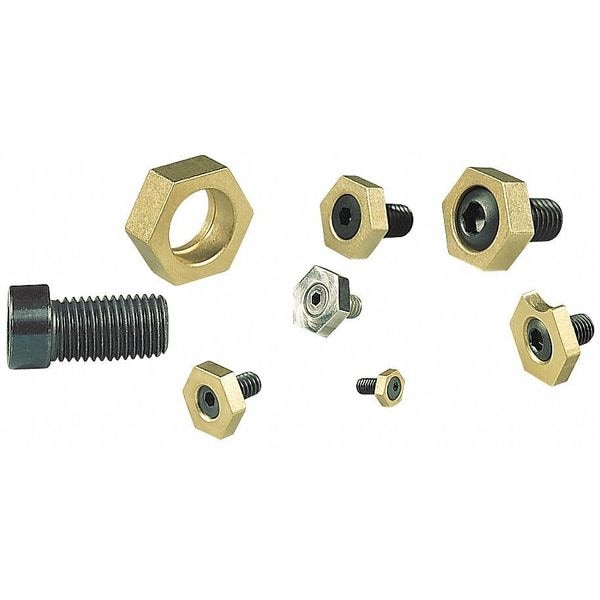

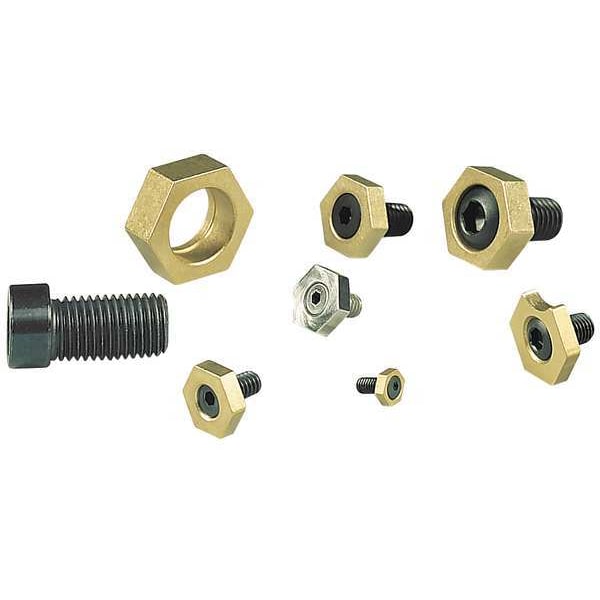

Fixture Clamps, Cam Action, M10, 20mm, PK10
| Item | Fixture Clamp |
|---|---|
| Clamp Style | Cam Action |
| Thread Size | M10 |
| Thread Length | 20 mm |
| Material | Brass/Steel |
| Diameter | 10 mm |
| Holding Force | 8895 N |
| Drive Size | 7 mm |
| For Use With | Workholding |
| Overall Width | Not Applicable |
| Overall Height | 25.35 mm |
| Clamp Type | Fixture Clamp |
| Application | Workholding |
| Slot Size | 20.61 mm |
| Features | Low Profile, Simple Design |
| Series | Not Applicable |
| Measurement System | Metric |
| Bolt Thread Length | 20 mm |
| Workpiece Tapping Distance | 10.15 mm |
| Overall Length | Not Applicable |
| Clamping Force - Maximum | 8,895 N |
| Step Depth | Not Applicable |
| Clamp Movement - Maximum | 1.27 mm |
| Head Height | 6.35 mm |
| Head Width | 20.61 mm |
| Step Height | Not Applicable |
| T-Slot Width | Not Applicable |
| Bolt Thread Size | M10 |
| Clamp Face Type | Smooth |
| Number of Clamps | 10 |
| Clamp Body Slot Length | Not Applicable |
| Clamp Body Material | Steel |
| Machinable Width - Maximum | Not Applicable |
| Clamping Face Material | Brass |
| Package Quantity | 10 |
