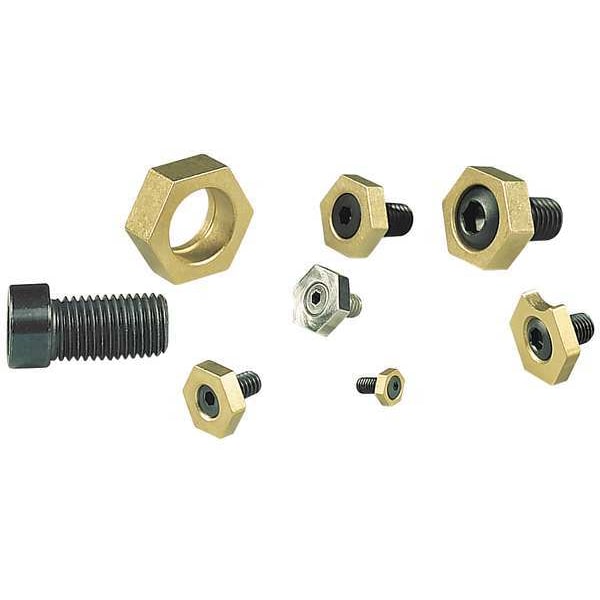

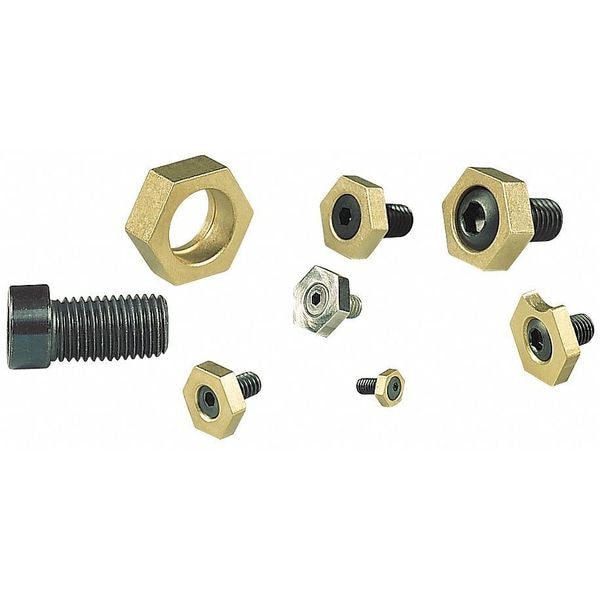

Fixture Clamps, Cam Action, M8, 16mm, PK4
| Item | Fixture Clamp |
|---|---|
| Clamp Style | Cam Action |
| Thread Size | M8 |
| Thread Length | 16 mm |
| Overall Width | Not Applicable |
| Overall Height | 21.35 mm |
| Material | Stainless |
| For Use With | Workholding |
| Diameter | 8 mm |
| Holding Force | 3558 N |
| Drive Size | 5 mm |
| Application | Workholding |
| Clamp Type | Fixture Clamp |
| Slot Size | 20.6 mm |
| Features | Low Profile |
| Measurement System | Metric |
| Clamping Face Material | Stainless Steel |
| Step Depth | Not Applicable |
| Head Width | 20.6 mm |
| Clamping Force - Maximum | 3,558 N |
| Clamp Movement - Maximum | 1.01 mm |
| Bolt Thread Size | M8 |
| Step Height | Not Applicable |
| Series | Not Applicable |
| Overall Length | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Clamp Face Type | Smooth |
| Clamp Body Material | Stainless Steel |
| Machinable Width - Maximum | Not Applicable |
| Workpiece Tapping Distance | 10.15 mm |
| Bolt Thread Length | 16 mm |
| Head Height | 6.35 mm |
| T-Slot Width | Not Applicable |
| Number of Clamps | 4 |
| Package Quantity | 4 |
