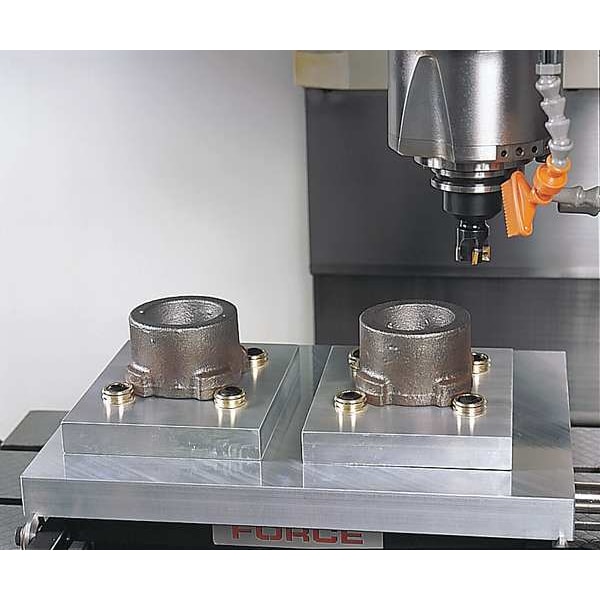

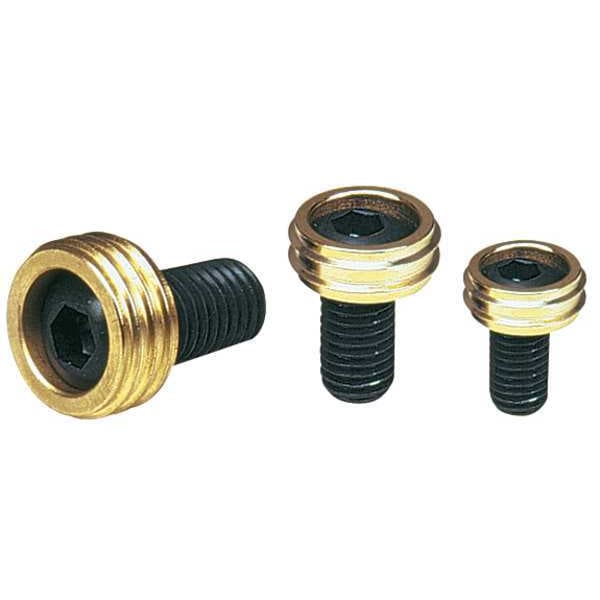

Knife Edge Clamps, Cam Action, 3/8-16, PK8
| Item | Fixture Clamp |
|---|---|
| Clamp Style | Cam Action |
| Thread Size | 3/8"-16 |
| Thread Length | 3/4 in |
| Overall Width | Not Applicable |
| For Use With | Workholding |
| Material | Steel |
| Overall Height | 0.96 in |
| Drive Size | 3/16 in |
| Holding Force | 2000 lb |
| Diameter | 3/8 in |
| Clamp Type | Fixture Clamp |
| Application | Workholding |
| Features | Low Profile |
| Material - Machining | Steel |
| Measurement System | Inch |
| Clamping Face Material | Steel |
| Step Depth | Not Applicable |
| Machinable Width - Maximum | Not Applicable |
| T-Slot Width | Not Applicable |
| Head Width | 0.812 in |
| Head Length | Not Applicable |
| Overall Length | Not Applicable |
| Bolt Thread Length | 0.71 in |
| Series | Not Applicable |
| Clamp Movement - Maximum | 0.05 in |
| Number of Clamps | 8 |
| Clamp Body Slot Length | Not Applicable |
| Clamp Face Type | Knife |
| Bolt Thread Size | 3/8"-16 |
| Head Height | 1/4 in |
| Workpiece Tapping Distance | 0.4 in |
| Step Height | Not Applicable |
| Clamping Force - Maximum | 8,895 N |
| Clamp Body Material | Steel |
| Package Quantity | 8 |
