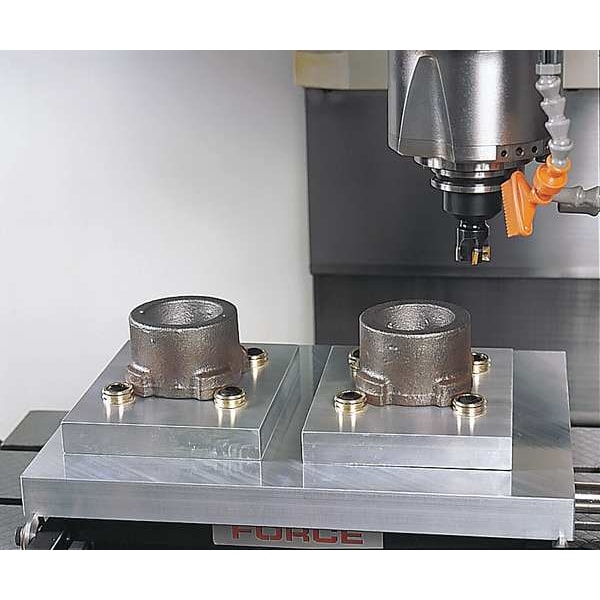

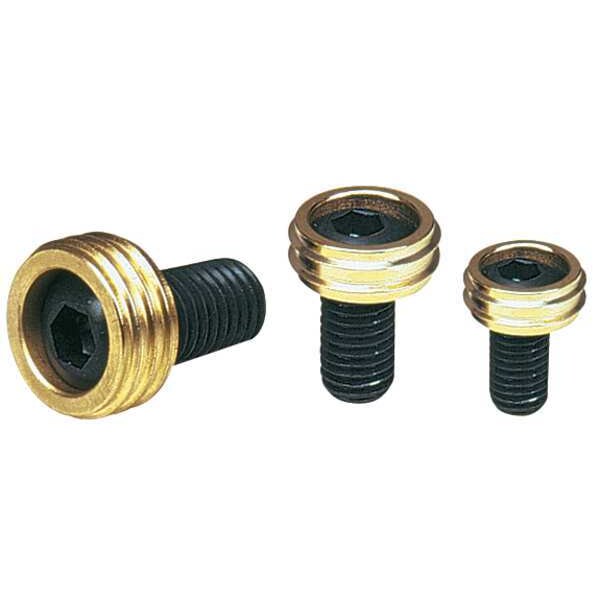

Knife Edge Clamps, Cam Action, 5/8-11, PK4
| Item | Fixture Clamp |
|---|---|
| Clamp Style | Cam Action |
| Thread Size | 5/8"-11 |
| Thread Length | 1-1/8 in |
| Material | Steel |
| For Use With | Workholding |
| Diameter | 5/8 in |
| Drive Size | 3/8 in |
| Holding Force | 6000 lb |
| Overall Height | 1-5/8 in |
| Overall Width | 1.187 in |
| Clamp Type | Fixture Clamp |
| Application | Workholding |
| Material - Machining | Steel |
| Features | Low Profile |
| Step Depth | Not Applicable |
| Series | Not Applicable |
| Clamp Body Slot Length | Not Applicable |
| Overall Length | Not Applicable |
| Clamp Movement - Maximum | 0.1 in |
| Clamping Face Material | Steel |
| Machinable Width - Maximum | Not Applicable |
| T-Slot Width | Not Applicable |
| Head Width | 1.187 in |
| Bolt Thread Size | 5/8"-11 |
| Head Length | Not Applicable |
| Measurement System | Inch |
| Bolt Thread Length | 1-1/8 in |
| Workpiece Tapping Distance | 0.59 in |
| Number of Clamps | 4 |
| Clamping Force - Maximum | 26,680 N |
| Clamp Body Material | Steel |
| Step Height | Not Applicable |
| Head Height | 1/2 in |
| Clamp Face Type | Knife |
| Package Quantity | 4 |
